ISNF-0249-D101

Active

SCHURTER Inc.

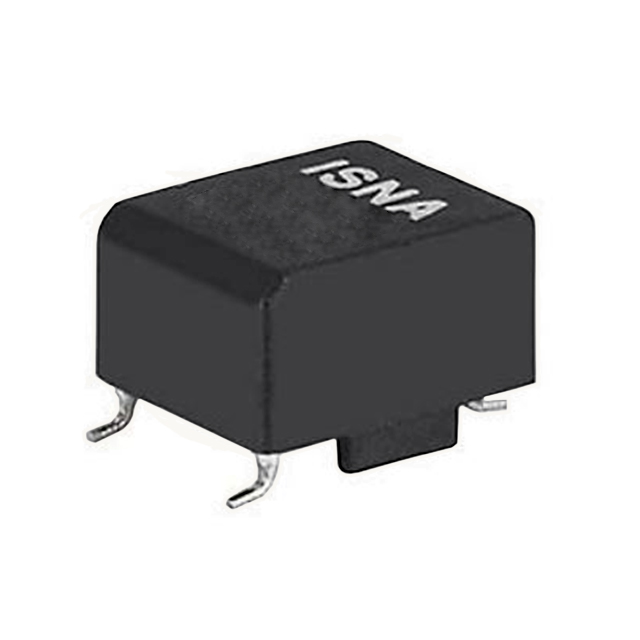

ISNF PULSE TRANSFORMER SMD 0.1A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ISNF PULSE TRANSFORMER SMD 0.1A

Technical Specifications

Parameters and characteristics for this part

Specification	ISNF-0249-D101

ET (Volt-Time)	250 VµS
Height - Seated (Max) [Max] [z]	0.532 "
Height - Seated (Max) [Max] [z]	13.5 mm
Inductance	1.4 mH
Mounting Type	Surface Mount
Operating Temperature [custom]	100 °C, -25 °C
Size / Dimension [x]	0.701 in, 17.8 mm
Size / Dimension [y]	18.2 mm, 0.717 in
Transformer Type	SCR and Triac Trigger (Encapsulated)
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Weight	9.12 g
Weight	0.32 oz

Part	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Operating Temperature [custom]	Transformer Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight	Weight	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	ET (Volt-Time)	Height - Seated (Max)	Height - Seated (Max) [Max]	Inductance
SCHURTER Inc. ISNF-0135-D101	1	1	1	-25 °C 100 °C	SCR and Triac Trigger (Encapsulated)	11 mm	0.433 in	8.22 g	0.29 oz	Surface Mount	13 mm	15.2 mm	0.512 in	0.598 in	150 VµS
SCHURTER Inc. ISNF-0239-D202	1	1	1	-25 °C 100 °C	SCR and Triac Trigger (Encapsulated)			9.97 g	0.352 oz	Surface Mount	22.3 mm	22.7 mm	0.878 in	0.894 in	350 VµS	14 mm	0.551 "	1.6 mH
SCHURTER Inc. ISNF-0249-D101	1	1	1	-25 °C 100 °C	SCR and Triac Trigger (Encapsulated)	13.5 mm	0.532 "	9.12 g	0.32 oz	Surface Mount	0.701 in 17.8 mm	0.717 in 18.2 mm			250 VµS			1.4 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.4mH SCR and Triac Trigger (Encapsulated) Pulse Transformer 1:1:1 Surface Mount
