Q-0403L0003108i

Active

Amphenol Custom Cable

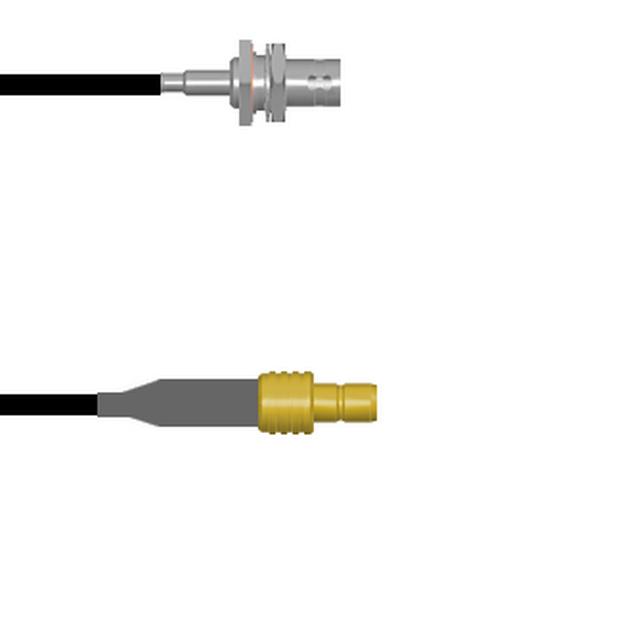

CBL ASSY BNC-SMB JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0403L0003108i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0403L0003108i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0403L0 Series

Part	2nd Connector Mounting Type	1st Contact Gender	1st Connector	Cable Type	Style	2nd Connector	Color	1st Connector Mounting Feature	Features	Overall Impedance	Length	Length	1st Connector Mounting Type	Frequency - Max [Max]	2nd Contact Gender	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0403L0005.75M	Free Hanging (In-Line)	Female	BNC Jack	RG-316	BNC to SMB	SMB Jack	Copper	Bulkhead - Front Side Nut	Shielded	50 Ohms	29.53 "	750 mm	Panel Mount	4 GHz	Female
Amphenol Custom Cable Q-0403L0005006i	Free Hanging (In-Line)	Female	BNC Jack	RG-316	BNC to SMB	SMB Jack	Copper	Bulkhead - Front Side Nut	Shielded	50 Ohms	6 in	152.4 mm	Panel Mount	4 GHz	Female
Amphenol Custom Cable Q-0403L0003048i	Free Hanging (In-Line)	Female	BNC Jack	RG-174	BNC to SMB	SMB Jack	Black	Bulkhead - Front Side Nut	Shielded	50 Ohms	48 in	1200 mm	Panel Mount	4 GHz	Female	4 ft
Amphenol Custom Cable Q-0403L0005002M	Free Hanging (In-Line)	Female	BNC Jack	RG-316	BNC to SMB	SMB Jack	Copper	Bulkhead - Front Side Nut	Shielded	50 Ohms	78.7 in	2 m	Panel Mount	4 GHz	Female	6.6 ft
Amphenol Custom Cable Q-0403L0003036i	Free Hanging (In-Line)	Female	BNC Jack	RG-174	BNC to SMB	SMB Jack	Black	Bulkhead - Front Side Nut	Shielded	50 Ohms	36 in	91.44 cm	Panel Mount	4 GHz	Female
Amphenol Custom Cable Q-0403L0003.25M	Free Hanging (In-Line)	Female	BNC Jack	RG-174	BNC to SMB	SMB Jack	Black	Bulkhead - Front Side Nut	Shielded	50 Ohms			Panel Mount	4 GHz	Female		9.843 "	250 mm
Amphenol Custom Cable Q-0403L0003.75M	Free Hanging (In-Line)	Female	BNC Jack	RG-174	BNC to SMB	SMB Jack	Black	Bulkhead - Front Side Nut	Shielded	50 Ohms	29.53 "	750 mm	Panel Mount	4 GHz	Female
Amphenol Custom Cable Q-0403L0003018i	Free Hanging (In-Line)	Female	BNC Jack	RG-174	BNC to SMB	SMB Jack	Black	Bulkhead - Front Side Nut	Shielded	50 Ohms			Panel Mount	4 GHz	Female			457.2 mm	457.2 mm
Amphenol Custom Cable Q-0403L0005108i	Free Hanging (In-Line)	Female	BNC Jack	RG-316	BNC to SMB	SMB Jack	Copper	Bulkhead - Front Side Nut	Shielded	50 Ohms	108 in	2.7 m	Panel Mount	4 GHz	Female	9 ft
Amphenol Custom Cable Q-0403L0003108i	Free Hanging (In-Line)	Female	BNC Jack	RG-174	BNC to SMB	SMB Jack	Black	Bulkhead - Front Side Nut	Shielded	50 Ohms	108 in	2.7 m	Panel Mount	4 GHz	Female	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 69.70
		25	$ 68.33
		50	$ 66.96
		100	$ 65.59
		250	$ 64.21

Description

General part information

Q-0403L0 Series

Cable Assembly Coaxial BNC to SMB RG-174 108.0" (2.7m) 9.0'
