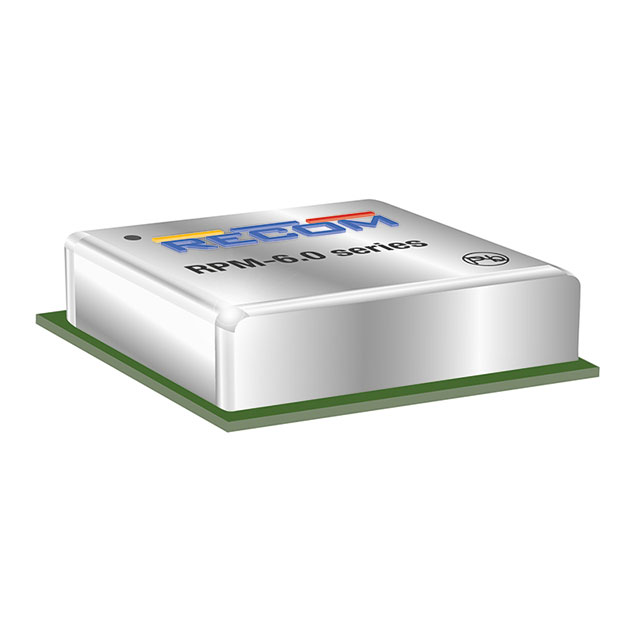

RPM5.0-6.0
ActiveRECOM Power
NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 1 OUTPUT, 30 W, 5 V, 6 A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPM5.0-6.0
ActiveRECOM Power
NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 1 OUTPUT, 30 W, 5 V, 6 A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPM5.0-6.0 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 99 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 25-BLGA Module |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [x] | 0.48 in |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [y] | 12.2 mm |
| Size / Dimension [z] | 0.15 " |
| Size / Dimension [z] | 3.8 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 15 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.40 | |
| 5 | $ 8.13 | |||
| 10 | $ 7.75 | |||
| 25 | $ 7.52 | |||
| 50 | $ 7.42 | |||
| 100 | $ 7.20 | |||
| 250 | $ 6.73 | |||
| Digi-Reel® | 1 | $ 8.40 | ||
| 5 | $ 8.13 | |||
| 10 | $ 7.75 | |||
| 25 | $ 7.52 | |||
| 50 | $ 7.42 | |||
| 100 | $ 7.20 | |||
| 250 | $ 6.73 | |||
| Tape & Reel (TR) | 500 | $ 6.73 | ||
| Newark | Each | 250 | $ 7.66 | |
| Sager | N/A | 1 | $ 8.40 | |
| 5 | $ 8.13 | |||
| 10 | $ 7.75 | |||
| 25 | $ 7.52 | |||
| 50 | $ 7.42 | |||
| 100 | $ 7.20 | |||
| 250 | $ 6.73 | |||
Description
General part information
RPM-6.0 Series
Non-Isolated DC/DC Converters 4-15Vin 5.0Vout 6A
