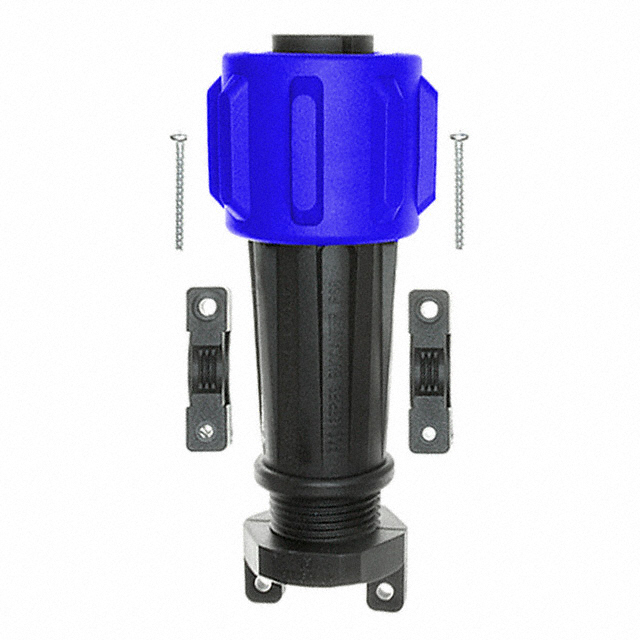

PXA911/10/S

Active

BULGIN LIMITED

CONNECTOR: CIRCULAR; PLUG; FEMALE; PIN: 10; 10A; 250V; BUCCANEER 900

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONNECTOR: CIRCULAR; PLUG; FEMALE; PIN: 10; 10A; 250V; BUCCANEER 900

Technical Specifications

Parameters and characteristics for this part

Specification	PXA911/10/S

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	0.866 in, 22 mm
Cable Opening [Min] [custom]	0.787 in, 20 mm
Color	Black, Blue
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	10 A
Features	UV Resistant, Coupling Nut, Backshell, Cable Clamp
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VAC

Part	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Connector Type	Mounting Type	Features	Material Flammability Rating	Voltage Rating	Orientation	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Ingress Protection	Backshell Material, Plating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Termination	Color	Primary Material	Number of Positions
BULGIN LIMITED PXA911/03/S	3	1	2	32 A	Female Sockets Plug	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut UV Resistant	UL94 V-0	600 VAC	Keyed	Brass	0.787 in 20 mm	0.866 in 22 mm	IP68 IP69K	Nylon Polyamide (PA)	Unshielded	85 °C	-40 °C	Nickel	Screw	Black Blue	Plastic
BULGIN LIMITED PXA911/03/P	3	1	2	32 A	Male Pins Plug	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut UV Resistant	UL94 V-0	600 VAC	Keyed	Brass	0.787 in 20 mm	0.866 in 22 mm	IP68 IP69K	Nylon Polyamide (PA)	Unshielded	85 °C	-40 °C	Nickel	Screw	Black Blue	Plastic
BULGIN LIMITED PXA911/10/S				10 A	Female Sockets Plug	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut UV Resistant	UL94 V-0	250 VAC	Keyed	Brass	0.787 in 20 mm	0.866 in 22 mm	IP68 IP69K	Nylon Polyamide (PA)	Unshielded	85 °C	-40 °C	Nickel	Screw	Black Blue	Plastic	10
BULGIN LIMITED PXA911/05/S				32 A	Female Sockets Plug	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut Trailing Neutral UV Resistant	UL94 V-0	600 VAC	Keyed	Brass	0.787 in 20 mm	0.866 in 22 mm	IP68 IP69K	Nylon Polyamide (PA)	Unshielded	85 °C	-40 °C	Nickel	Screw	Black Blue	Plastic	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 (Power) Position Circular Connector Plug, Female Sockets Screw
