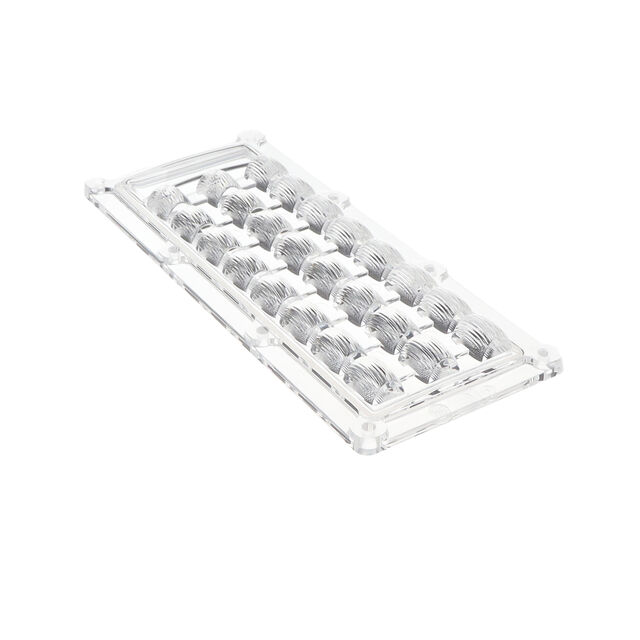

CS18305_HB-IP-24-O
ActiveLEDiL
ASSEMBLY RECTANG 24 POS 173.0 X 71.4MM (/ 13 [FOAM TRAY] ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS18305_HB-IP-24-O
ActiveLEDiL
ASSEMBLY RECTANG 24 POS 173.0 X 71.4MM (/ 13 [FOAM TRAY] ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS18305_HB-IP-24-O |
|---|---|
| Color | Clear |
| Lens Size [x] | 173.27 mm |
| Lens Size [y] | 71.67 mm |
| Lens Style | Rectangle with Flat Top |
| Material | Acrylic |
| Mounting Type | Screw |
| Number of LEDs | 24 |
| Optical Pattern | Elliptical/Oval |
| Type | Lens |
| Viewing Angle [Max] | 74 ° |
| Viewing Angle [Min] | 37 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CS18305 Series
Lens Clear 37° ~ 74° Elliptical/Oval Screw
