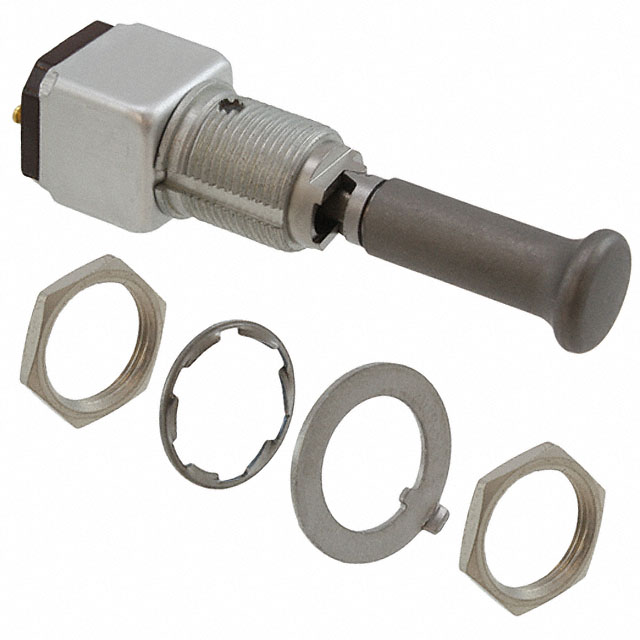

11TW1-5M

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Micro-Toggle Switch, Line Guide

11TW1-5M

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet Micro-Toggle Switch, Line Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11TW1-5M

Actuator Length [x]	29.46 mm
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	5 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-Off-Mom
Termination Style	Solder Turret
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

11TW1 Series

Part	Ingress Protection	Switch Function	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Length [x]	Illumination	Panel Cutout Dimensions [diameter]	Termination Style	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Voltage Rating - DC	Actuator Material	Features
Honeywell Sensing and Productivity Solutions 11TW105-7	Environment Sealed	Mom-Off-Mom	15/32-32	71 °C	-65 ░C	SPDT	17.27 mm	Non-Illuminated	12.4 mm	Solder Turret	Standard Round	125 V	5 A
Honeywell Sensing and Productivity Solutions 11TW1-3G	Environment Sealed	On-On	15/32-32	71 °C	-65 ░C	SPDT	29.46 mm	Non-Illuminated	12.4 mm	Solder Turret	Locking Lever	125 V	5 A	28 V
Honeywell Sensing and Productivity Solutions 11TW1-3	Environment Sealed	On-On	15/32-32	71 °C	-65 ░C	SPDT	17.27 mm	Non-Illuminated	12.4 mm	Solder Turret	Standard Round	125 V	5 A	28 V
Honeywell Sensing and Productivity Solutions 11TW1-1D	Environment Sealed	On-Off-On	15/32-32	71 °C	-65 ░C	SPDT	29.46 mm	Non-Illuminated	12.4 mm	Solder Turret	Locking Lever	125 V	5 A	28 V
Honeywell Sensing and Productivity Solutions 11TW1-2G	Environment Sealed	On-Off	15/32-32	71 °C	-65 ░C	SPST	29.46 mm	Non-Illuminated	12.4 mm	Solder Turret	Locking Lever	125 V	5 A	28 V
Honeywell Sensing and Productivity Solutions 11TW1-5M	Environment Sealed	On-Off-Mom	15/32-32	71 °C	-65 ░C	SPDT	29.46 mm	Non-Illuminated	12.4 mm	Solder Turret	Locking Lever	125 V	5 A	28 V
Honeywell Sensing and Productivity Solutions 11TW19-2-A002	Environment Sealed	On-Off	15/32-32	71 °C	-65 ░C	SPST	1 in	Non-Illuminated	12.4 mm	Solder Turret	Flatted	125 V	5 A		Thermoplastic	Black Actuator
Honeywell Sensing and Productivity Solutions 11TW1-8	Environment Sealed	On-Mom	15/32-32	71 °C	-65 ░C	SPDT	17.27 mm	Non-Illuminated	12.4 mm	Solder Turret	Standard Round	125 V	5 A	28 V
Honeywell Sensing and Productivity Solutions 11TW1-261	Environment Sealed	Off-Mom	15/32-32	71 °C	-65 ░C	SPST-NO	17.27 mm	Non-Illuminated	12.4 mm	Solder Turret	Standard Round	125 V	5 A	28 V
Honeywell Sensing and Productivity Solutions 11TW19-7-A002	Environment Sealed	Mom-Off-Mom	15/32-32	71 °C	-65 ░C	SPDT	1 in	Non-Illuminated	12.4 mm	Solder Turret	Flatted	125 V	5 A		Thermoplastic	Black Actuator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 162.89
