Q-0201H0001001M

Active

Amphenol Custom Cable

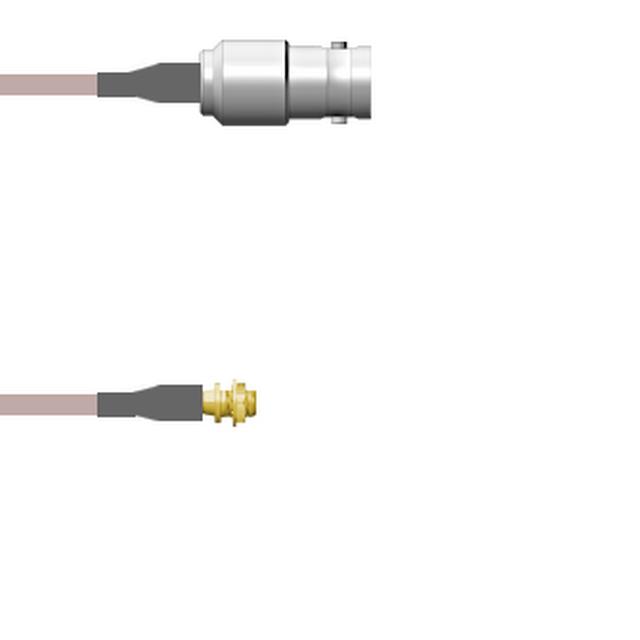

CBL ASSY BNC-MMCX JACK-JACK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0201H0001001M

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-JACK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0201H0001001M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MMCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0201H0 Series

Part	2nd Connector Mounting Type	Features	1st Connector	2nd Connector	Overall Impedance	Cable Type	1st Connector Mounting Type	2nd Connector Mounting Feature	Color	Frequency - Max [Max]	Style	2nd Contact Gender	1st Contact Gender	Length	Length	Length
Amphenol Custom Cable Q-0201H0001002M	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female	6.6 ft	78.7 in	2 m
Amphenol Custom Cable Q-0201H0001003i	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female		3 in	76.2 mm
Amphenol Custom Cable Q-0201H00011.5M	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female	4.9 ft	59.1 in	1.5 m
Amphenol Custom Cable Q-0201H0001.75M	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female		29.53 "	750 mm
Amphenol Custom Cable Q-0201H0001036i	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female		36 in	91.44 cm
Amphenol Custom Cable Q-0201H0001048i	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female	4 ft	48 in	1200 mm
Amphenol Custom Cable Q-0201H0001012i	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female		12 "	304.8 mm
Amphenol Custom Cable Q-0201H0001009i	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female		9 "	228.6 mm
Amphenol Custom Cable Q-0201H0001001M	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female	3.3 ft	39.4 in	1 m
Amphenol Custom Cable Q-0201H0001084i	Panel Mount	Shielded	BNC Jack	MMCX Jack	50 Ohms	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Copper	4 GHz	BNC to MMCX	Female	Female	7 ft	84 in	2.1 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 133.89
		25	$ 131.29
		50	$ 128.68
		100	$ 126.07
		250	$ 123.47

Description

General part information

Q-0201H0 Series

Cable Assembly Coaxial BNC to MMCX RG-178 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
