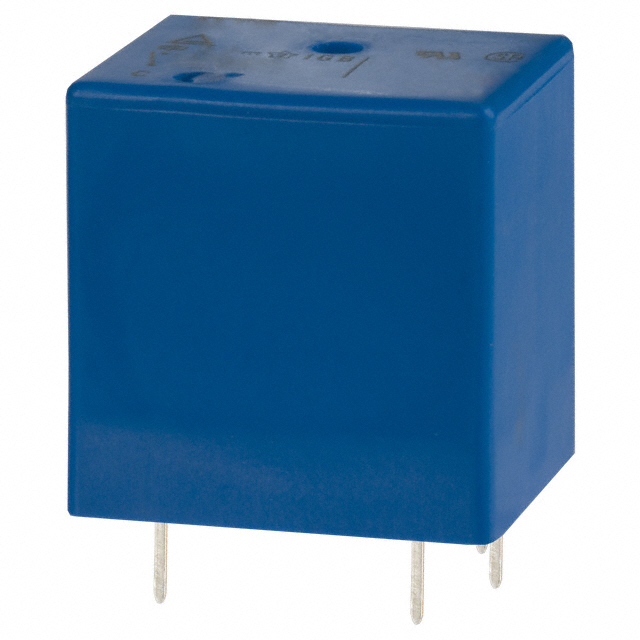

SRUDH-SH-124DM1,000

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 12A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRUDH-SH-124DM1,000

Approval Agency	TUV, CSA, cURus
Coil Current	15 mA
Coil Resistance	1.6 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	12 A
Load - Max Switching	2880 VA, 336 W
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	1.2 VDC
Operate Time	10 ms
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage	240 VAC, 28 VDC
Termination Style	PC Pin

SRUDH Series

Part	Termination Style	Relay Type	Contact Material	Switching Voltage	Release Time	Contact Form	Coil Voltage	Coil Resistance	Coil Type	Seal Rating	Coil Current	Must Release Voltage	Mounting Type	Operate Time	Must Operate Voltage	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Load - Max Switching
TE Connectivity Potter & Brumfield Relays SRUDH-SS-109D1,000	PC Pin	General Purpose	Silver Cadmium Oxide (AgCdO)	28 VDC 240 VAC	5 ms	SPDT (1 Form C)	9 VDC	225 Ohms	Non Latching	Sealed - Flux Protection	40 mA	0.45 VDC	Through Hole	10 ms	6.75 VDC	12 A	-30 ░C	80 C	CSA cURus TUV	336 W 2880 VA
TE Connectivity Potter & Brumfield Relays SRUDH-SH-124D1,000	PC Pin	General Purpose	Silver Cadmium Oxide (AgCdO)	28 VDC 240 VAC	5 ms	SPDT (1 Form C)	24 VDC	1.6 kOhms	Non Latching	Sealed - Fully	15 mA	1.2 VDC	Through Hole	10 ms	18 VDC	12 A	-30 ░C	80 C	CSA cURus TUV	336 W 2880 VA
TE Connectivity Potter & Brumfield Relays SRUDH-SS-112DM1,000	PC Pin	General Purpose	Silver Cadmium Oxide (AgCdO)	28 VDC 240 VAC	5 ms	SPST-NO (1 Form A)	12 VDC	400 Ohms	Non Latching	Sealed - Flux Protection	30 mA	0.6 VDC	Through Hole	10 ms	9 VDC	12 A	-30 ░C	80 C	CSA cURus TUV	336 W 2880 VA
TE Connectivity Potter & Brumfield Relays SRUDH-SH-109D1,000	PC Pin	General Purpose	Silver Cadmium Oxide (AgCdO)	28 VDC 240 VAC	5 ms	SPDT (1 Form C)	9 VDC	225 Ohms	Non Latching	Sealed - Fully	40 mA	0.45 VDC	Through Hole	10 ms	6.75 VDC	12 A	-30 ░C	80 C	CSA cURus TUV	336 W 2880 VA
TE Connectivity Potter & Brumfield Relays SRUDH-SH-124DM1,000	PC Pin	General Purpose	Silver Cadmium Oxide (AgCdO)	28 VDC 240 VAC	5 ms	SPST-NO (1 Form A)	24 VDC	1.6 kOhms	Non Latching	Sealed - Fully	15 mA	1.2 VDC	Through Hole	10 ms	18 VDC	12 A	-30 ░C	80 C	CSA cURus TUV	336 W 2880 VA
TE Connectivity Potter & Brumfield Relays SRUDH-SS-112D1,000	PC Pin	General Purpose	Silver Cadmium Oxide (AgCdO)	28 VDC 240 VAC	5 ms	SPDT (1 Form C)	12 VDC	400 Ohms	Non Latching	Sealed - Flux Protection	30 mA	0.6 VDC	Through Hole	10 ms	9 VDC	12 A	-30 ░C	80 C	CSA cURus TUV	336 W 2880 VA
