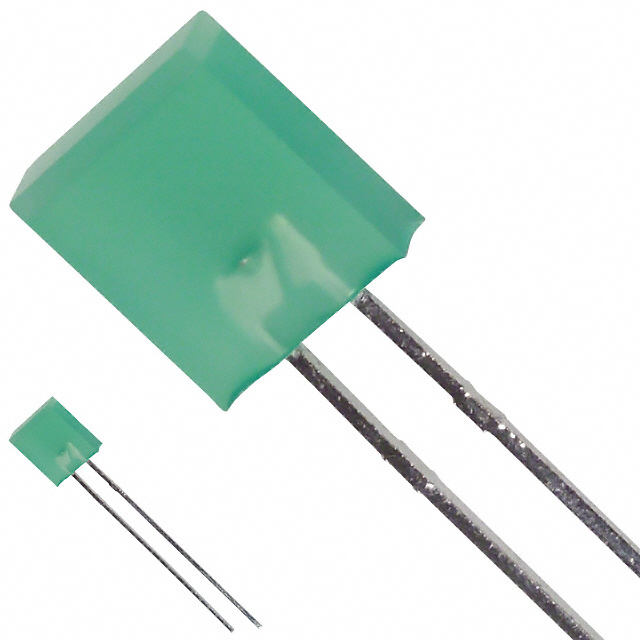

SSL-LX25783GD

Active

Lumex Opto/Components Inc.

LED GRN DIFF RECT 2.3MMX7MM T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GRN DIFF RECT 2.3MMX7MM T/H

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Mounting Type	Lens Style	Wavelength - Peak	Supplier Device Package	Millicandela Rating	Viewing Angle	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Color	Current - Test	Height (Max) [Max] [z]	Lens Size [x]	Lens Size [y]	Color	Configuration
Lumex Opto/Components Inc. SSL-LX25783SYD	Diffused	Through Hole	Rectangle with Flat Top	585 nm	Rectangular 2.3mmx7mm	160 mcd	110 °	2.1 V	Radial	Yellow	20 mA	8 mm	7 mm	2.3 mm	Yellow	Standard
Lumex Opto/Components Inc. SSL-LX25783GD	Diffused	Through Hole	Rectangle with Flat Top	565 nm	Rectangular 2.3mmx7mm	9 mcd	110 °	2 V	Radial	Green	20 mA	8 mm	7 mm	2.3 mm	Green	Standard
Lumex Opto/Components Inc. SSL-LX25783AW-TD	Diffused	Through Hole	Rectangle with Flat Top	605 nm	Rectangular 2.3mmx7mm	10 mcd	110 °	2 V	Radial	White	20 mA	8 mm	7 mm	2.3 mm	Amber	Standard
Lumex Opto/Components Inc. SSL-LX25783SRD	Diffused	Through Hole	Rectangle with Flat Top	660 nm	Rectangular 2.3mmx7mm	50 mcd	110 °	1.8 V	Radial	Red	20 mA	8 mm	7 mm	2.3 mm	Red	Standard
Lumex Opto/Components Inc. SSL-LX25783ID	Diffused	Through Hole	Rectangle with Flat Top	635 nm	Rectangular 2.3mmx7mm	9 mcd	80 °	2 V	Radial	Red	20 mA	8 mm	7 mm	2.3 mm	Red	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green LED Indication - Discrete 2V Radial

Technical documentation and resources

No documents available
