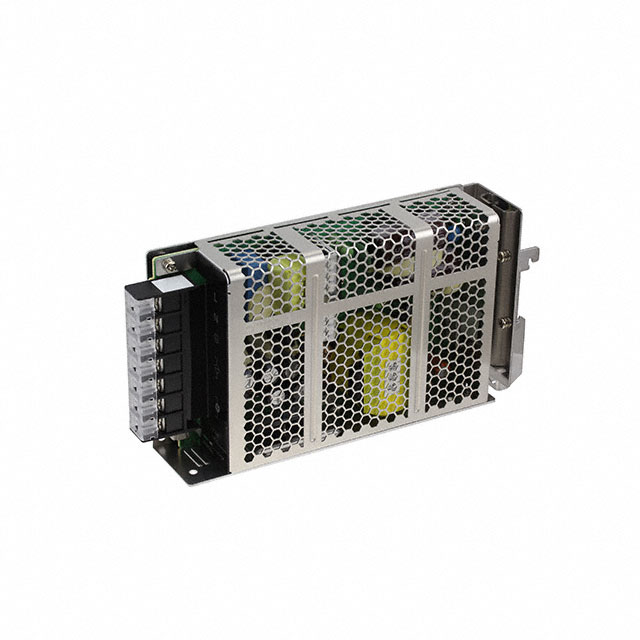

S8FS-G15012CD

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 12V 150W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsS8VK Power Supply Catalog

S8FS-G15012CD

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 12V 150W

Deep-Dive with AI

DocumentsS8VK Power Supply Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S8FS-G15012CD

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cURus, TUV, UL, CE
Current - Output (Max) [Max]	13 A
Efficiency	87 %
Features	Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	150 W
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

S8FS-G150 Series

Part	Features	DC Voltage - Input (Max) [Max]	Input Type	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Voltage - Isolation	Approval Agency	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Type	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]
Omron Electronics Inc-EMC Div S8FS-G15048CD	Adjustable Output Universal Input	370 V	AC or DC	1	158 W	3.3 A	3000 V	CE cURus TUV UL	120 V	85 VAC	264 VAC	Industrial ITE (Commercial)	48 V	-20 °C	70 °C	88 %
Omron Electronics Inc-EMC Div S8FS-G15012CD	Adjustable Output Universal Input		AC	1	150 W	13 A	3000 V	CE cURus TUV UL		85 VAC	264 VAC	ITE (Commercial)	12 V	-20 °C	70 °C	87 %
Omron Electronics Inc-EMC Div S8FS-G15024C	Adjustable Output DC Input Capable Universal Input			1	150 W		3000 V	CE cURus TUV UL				ITE (Commercial)	24 V	-20 °C	70 °C	90 %	Enclosed	Chassis Mount	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in
Omron Electronics Inc-EMC Div S8FS-G15005C	Adjustable Output DC Input Capable Universal Input			1	105 W		3000 V	CE cURus TUV UL				ITE (Commercial)	5 V	-20 °C	70 °C	81 %	Enclosed	Chassis Mount	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	21 A
Omron Electronics Inc-EMC Div S8FS-G15048C	Adjustable Output Universal Input			1	158 W		3000 V	CE cURus TUV UL				Industrial ITE (Commercial)	48 V	-20 °C	70 °C	88 %	Enclosed	Chassis Mount	38 mm	3.82 in	6.26 in	97 mm	159 mm	1.5 in	3.3 A	85 VAC 120 VDC	264 VAC 370 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 156.34
		10	$ 137.41
		25	$ 130.53
		50	$ 125.56

Description

General part information

S8FS-G150 Series

AC/DC DIN RAIL SUPPLY 12V 150W

Documents

Technical documentation and resources

S8VK Power Supply Catalog

Datasheet
