ADY12006

Active

Panasonic Electric Works

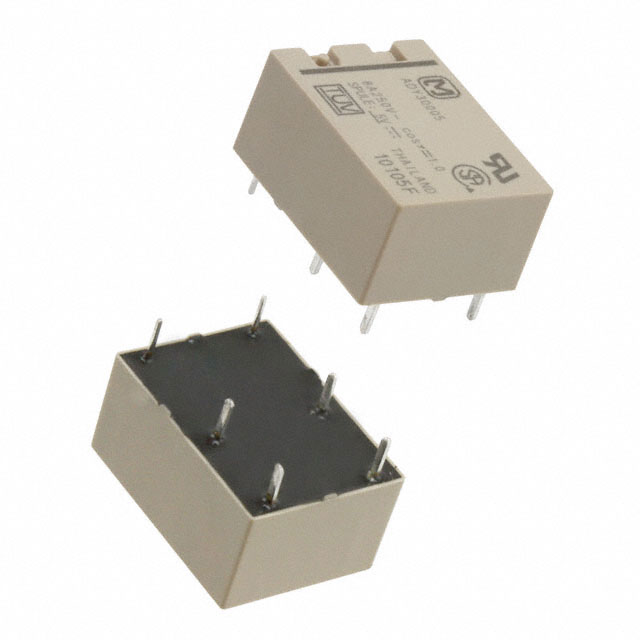

RELAY GEN PURPOSE SPST 10A 6V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 10A 6V

Technical Specifications

Parameters and characteristics for this part

Specification	ADY12006

Approval Agency	VDE, CSA, UR
Coil Current	33.3 mA
Coil Resistance	180 Ohms
Coil Type	Latching, Dual Coil
Contact Form	SPST-NO (1 Form A)
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Load - Max Switching	2500 VA, 1250 W
Mounting Type	Through Hole
Must Operate Voltage	4.2 VDC
Operate Time	10 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	8 ms
Seal Rating	Sealed - Fully
Switching Voltage	250 VAC, 125 VDC
Termination Style	PC Pin

Part	Approval Agency	Release Time	Switching Voltage	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Must Operate Voltage	Contact Form	Operate Time	Contact Rating (Current)	Coil Resistance	Seal Rating	Coil Current	Relay Type	Coil Type	Load - Max Switching	Termination Style	Coil Voltage
Panasonic Electric Works ADY12006	CSA UR VDE	8 ms	125 VDC 250 VAC	Through Hole	-40 °C	70 °C	Gold (Au) Silver Tin Oxide (AgSnO)	4.2 VDC	SPST-NO (1 Form A)	10 ms	10 A	180 Ohms	Sealed - Fully	33.3 mA	General Purpose	Latching Dual Coil	1250 W 2500 VA	PC Pin
Panasonic Electric Works ADY12009	CSA UR VDE	8 ms	125 VDC 250 VAC	Through Hole	-40 °C	70 °C	Gold (Au) Silver Tin Oxide (AgSnO)	6.3 VDC	SPST-NO (1 Form A)	10 ms	10 A	405 Ohms	Sealed - Fully	22.2 mA	General Purpose	Latching Dual Coil	1250 W 2500 VA	PC Pin	9 VDC
Panasonic Electric Works ADY12003	CSA UR VDE	8 ms	125 VDC 250 VAC	Through Hole	-40 °C	70 °C	Gold (Au) Silver Tin Oxide (AgSnO)	2.1 VDC	SPST-NO (1 Form A)	10 ms	10 A	45 Ohms	Sealed - Fully	66.6 mA	General Purpose	Latching Dual Coil	1250 W 2500 VA	PC Pin
Panasonic Electric Works ADY12005	CSA UR VDE	8 ms	125 VDC 250 VAC	Through Hole	-40 °C	70 °C	Gold (Au) Silver Tin Oxide (AgSnO)	3.5 VDC	SPST-NO (1 Form A)	10 ms	10 A	125 Ohms	Sealed - Fully	40 mA	General Purpose	Latching Dual Coil	1250 W 2500 VA	PC Pin	5 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 7.23

General part information

General Purpose Relay SPST-NO (1 Form A) 6VDC Coil Through Hole
