PR20203HBDN
ActiveMETZ CONNECT USA Inc.

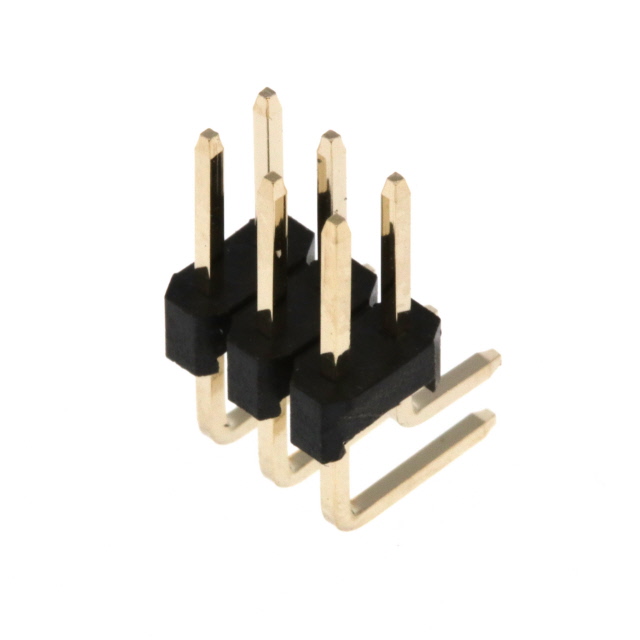

PIN HEADER, THR, DUAL ROW, .100"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR20203HBDN
ActiveMETZ CONNECT USA Inc.
PIN HEADER, THR, DUAL ROW, .100"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR20203HBDN |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Mating | 6 mm |
| Contact Length - Mating | 0.236 in |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Copper Zinc |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polyethylene |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.27 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| 5000 | $ 0.11 | |||
| 10000 | $ 0.10 | |||
Description
General part information
PR20203HB Series
Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
