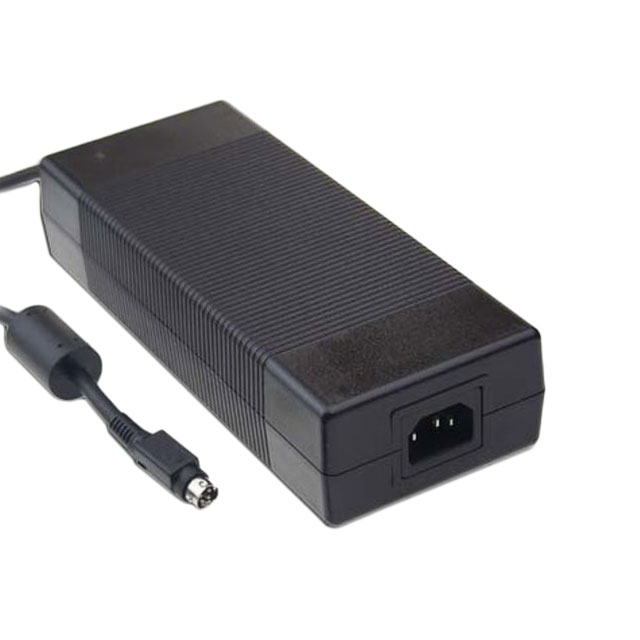

GST220A36-R7B

Active

MEAN WELL USA Inc.

AC/DC DESKTOP ADAPTER 36V 220W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DESKTOP ADAPTER 36V 220W

Technical Specifications

Parameters and characteristics for this part

Specification	GST220A36-R7B

Applications	ITE (Commercial)
Approval Agency	CE, GS, CCC, cULus, EAC, SIRIM, BIS, CB, BSMI, RCM, KC, PSE
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	6.1 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	220 W
Region Utilized	International
Size / Dimension [x]	210 mm
Size / Dimension [x]	8.27 in
Size / Dimension [y]	3.35 in
Size / Dimension [y]	85 mm
Size / Dimension [z]	46 mm
Size / Dimension [z]	1.81 "
Voltage - Output	36 V

Part	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	No Load Power Consumption [Max]	Output Connector	Output Connector	Input Type	Power (Watts)	Input Connector	Efficiency	Approval Agency	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Cord Length	Cord Length	Applications	Current - Output (Max) [Max]	Form
MEAN WELL USA Inc. GST220A36-R7B	International	46 mm	210 mm	3.35 in	1.81 "	85 mm	8.27 in	150 mW	4 Pin	Power DIN	Cord	220 W	IEC 320-C14	Level VI	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	36 V	70 °C	-30 ░C	1 m	39.4 "	ITE (Commercial)	6.1 A	Desktop (Class I)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36V 220 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
