M3041-000006-100PG

Active

TE Connectivity Measurement Specialties

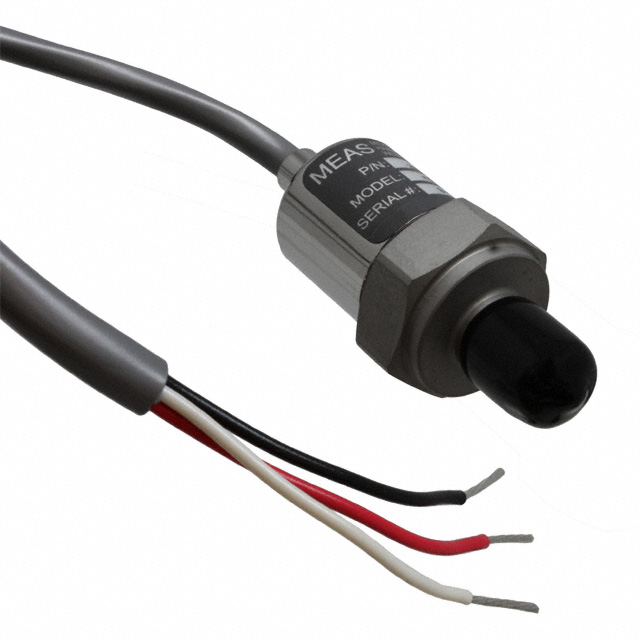

TRANSDUCER 1-5V 100# PRES

Deep-Dive with AI

Search across all available documentation for this part.

M3041-000006-100PG

Active

TE Connectivity Measurement Specialties

TRANSDUCER 1-5V 100# PRES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3041-000006-100PG

Accuracy	1 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	2000 PSI
Maximum Pressure [Max]	13789.51 kPa
Operating Pressure	689.48 kPa
Operating Pressure	100 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Output [Max]	5 V
Output [Min]	1 V
Output Type	Analog Voltage
Package / Case	Cylinder, Threaded
Port Size	0.125 "
Port Size	3.18 mm
Port Size	Male
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

M3041 Series

Part	Applications	Accuracy	Features	Output [Min]	Output [Max]	Port Size	Port Size	Port Size	Port Style	Output Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Pressure Type	Termination Style	Maximum Pressure	Maximum Pressure	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]
TE Connectivity Measurement Specialties M3041-000006-250PG	Industrial Automation	1 %	Amplified Output Temperature Compensated	1 V	5 V	0.125 "	3.18 mm	Male	Threaded	Analog Voltage	Cylinder Threaded	85 °C	-20 C	250 PSI	1723.69 kPa	30 VDC	10 VDC	500 PSI	3447.38 kPa	Vented Gauge	Cable
TE Connectivity Measurement Specialties M3041-000006-100PG	Industrial Automation	1 %	Amplified Output Temperature Compensated	1 V	5 V	0.125 "	3.18 mm	Male	Threaded	Analog Voltage	Cylinder Threaded	85 °C	-20 C	100 PSI	689.48 kPa	30 VDC	10 VDC	2000 PSI	13789.51 kPa	Vented Gauge	Cable
TE Connectivity Measurement Specialties M3041-000006-500PG	Industrial Automation	1 %	Amplified Output Temperature Compensated	1 V	5 V	0.125 "	3.18 mm	Male	Threaded	Analog Voltage	Cylinder	85 °C	-20 C	500 PSI	3447.38 kPa	30 VDC	10 VDC	1000 PSI	6894.76 kPa	Vented Gauge	Cable
TE Connectivity Measurement Specialties M3041-000005-05KPG	Industrial Automation	1 %	Amplified Output Temperature Compensated	1 V	5 V				Threaded	Analog Voltage	Cylinder Threaded	85 °C	-20 C	5000 PSI	34473.79 kPa	30 VDC	10 VDC			Vented Gauge	Cable	10000 PSI	68947.57 kPa	NPT	0.25 "	6.35 mm	Male
TE Connectivity Measurement Specialties M3041-000005-2K5PG	Industrial Automation	1 %	Amplified Output Temperature Compensated	1 V	5 V				Threaded	Analog Voltage	Cylinder Threaded	85 °C	-20 C	2500 PSI	17236.89 kPa	30 VDC	10 VDC	5000 PSI	34473.79 kPa	Vented Gauge	Cable			NPT	0.25 "	6.35 mm	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 126.36
		10	$ 114.51
		25	$ 110.56

Description

General part information

M3041 Series

TRANSDUCER 1-5V 100# PRES

Documents

Technical documentation and resources

No documents available
