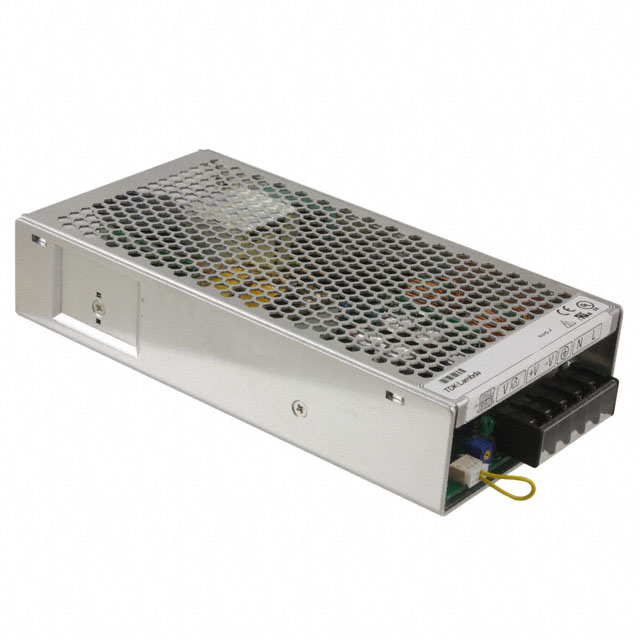

GWS250-48/CO2

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 250W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 250W

Technical Specifications

Parameters and characteristics for this part

Specification	GWS250-48/CO2

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	5.3 A
Efficiency	93 %
Features	Universal Input, Adjustable Output, Standby Output, DC Input Capable, Remote On/Off
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	250 W
Size / Dimension [x]	198.1 mm
Size / Dimension [x]	7.8 in
Size / Dimension [y]	4.1 "
Size / Dimension [y]	104.1 mm
Size / Dimension [z]	40.9 mm
Size / Dimension [z]	1.61 "
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Efficiency	Number of Outputs	Voltage - Isolation	Features	Voltage - Output 1	Mounting Type	Current - Output 1	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Type
TDK-LAMBDA GWS250-48/CO2	93 %	1	3000 V	Adjustable Output DC Input Capable Remote On/Off Standby Output Universal Input	48 V	Chassis Mount	5.3 A	250 W	-25 °C	70 °C	CE	198.1 mm	40.9 mm	4.1 "	104.1 mm	7.8 in	1.61 "	ITE (Commercial)	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 210.79

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
