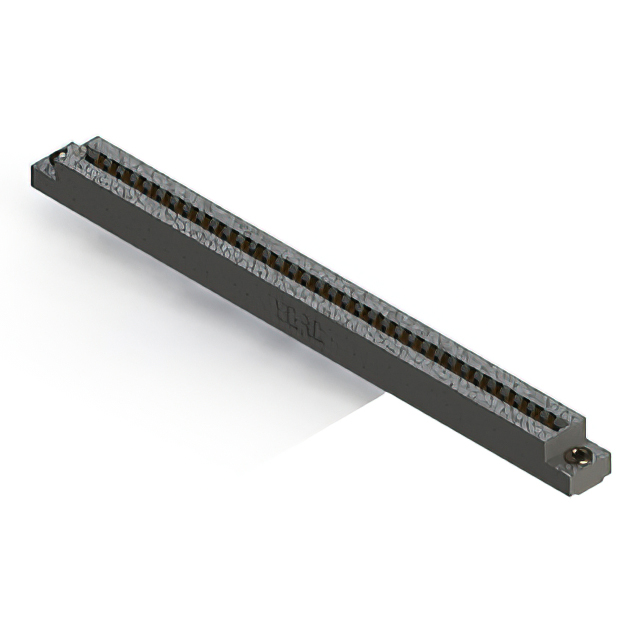

356-035-520-103
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-035-520-103
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-035-520-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 70 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
356-035 Series
| Part | Color | Number of Rows | Number of Positions/Bay/Row [custom] | Termination | Mounting Type | Gender | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Pitch [x] | Pitch [x] | Card Type | Contact Type | Material - Insulation | Termination Rows | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 2 | 35 | Solder | Panel Mount Through Hole | Female | 70 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | |
EDAC Inc. | Black | 2 | 35 | Solder | Panel Mount Through Hole | Female | 70 | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Tin | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Card Guides | ||||
EDAC Inc. | Black | 2 | 35 | Solder | Panel Mount Through Hole | Female | 70 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | |
EDAC Inc. | Black | 2 | 35 | Solder Eyelet(s) | Female | 70 | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Tin | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Card Guides | |||||
EDAC Inc. | Black | 2 | 35 | Solder | Panel Mount Through Hole | Female | 70 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | |
EDAC Inc. | Black | 2 | 35 | Solder | Panel Mount Through Hole | Female | 70 | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | |||
EDAC Inc. | Black | 2 | 35 | Solder | Panel Mount Through Hole | Female | 70 | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | |||
EDAC Inc. | Black | 2 | 35 | Solder | Panel Mount Through Hole | Female | 70 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | |
EDAC Inc. | Black | 2 | 35 | Solder | Panel Mount Through Hole | Female | 70 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | |
EDAC Inc. | Black | 2 | 35 | Solder | Panel Mount Through Hole | Female | 70 | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 21.23 | |
Description
General part information
356-035 Series
70 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
