H2072-01

Active

Harwin Inc.

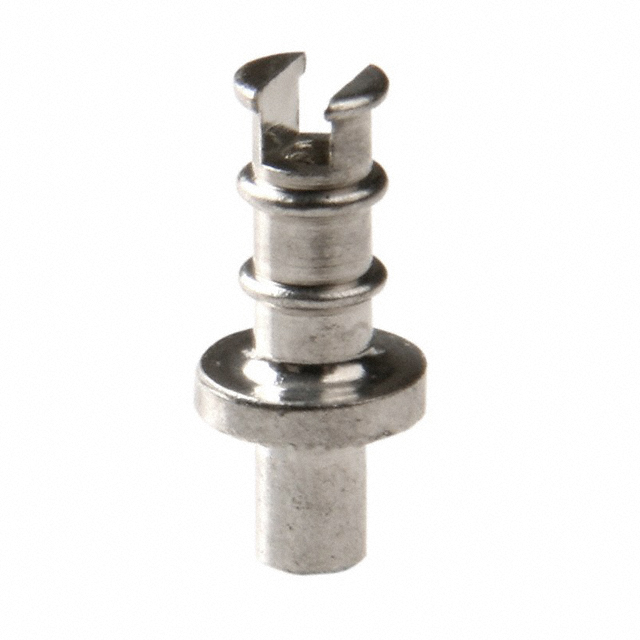

TURRET SOLDER / PRESS MOUNT TERMINAL, NON INSULATED, 2.27 MM, TIN, 8.74 MM, 2.52 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +1

H2072-01

Active

Harwin Inc.

TURRET SOLDER / PRESS MOUNT TERMINAL, NON INSULATED, 2.27 MM, TIN, 8.74 MM, 2.52 MM

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H2072-01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass Alloy
Diameter - Turret Head [diameter]	3.25 mm
Diameter - Turret Head [diameter]	0.128 in
Flange Diameter [diameter]	3.96 mm
Flange Diameter [diameter]	0.156 in
Insulation	Non-Insulated
Length - Above Board [x]	6.35 mm
Length - Above Board [x]	0.25 "
Length - Below Flange [Max] [x]	0.099 in
Length - Below Flange [Max] [x]	2.51 mm
Length - Below Flange [Min] [x]	2.39 mm
Length - Below Flange [Min] [x]	0.094 in
Length - Overall [x]	0.344 in
Length - Overall [x]	8.74 mm
Mounting Hole Diameter [Max]	2.26 mm
Mounting Hole Diameter [Max]	0.089 "
Mounting Hole Diameter [Min]	0.085 "
Mounting Hole Diameter [Min]	2.17 mm
Mounting Type	Through Hole
Number of Turrets	Triple
Staking Side ID [Max]	1.53 mm
Staking Side ID [Max]	0.06 "
Staking Side ID [Min]	1.4 mm
Staking Side ID [Min]	0.055 "
Staking Side OD [Max]	2.16 mm
Staking Side OD [Max]	0.085 in
Staking Side OD [Min]	2.03 mm
Staking Side OD [Min]	0.08 in
Terminal Type	Fork, Single End
Termination	Swage

H2072 Series

Part	Terminal Type	Length - Below Flange [x]	Length - Below Flange [x]	Contact Material	Mounting Type	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Number of Turrets	Contact Finish	Length - Overall	Length - Overall	Board Thickness	Board Thickness	Staking Side OD [Min] [diameter]	Staking Side OD [Min] [diameter]	Staking Side OD [Max] [diameter]	Staking Side OD [Max] [diameter]	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Insulation	Length - Above Board [x]	Length - Above Board [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Staking Side ID [Max]	Staking Side ID [Max]	Staking Side ID [Min]	Staking Side ID [Min]	Termination	Length - Below Flange [Max] [x]	Length - Below Flange [Max] [x]	Length - Below Flange [Min] [x]	Length - Below Flange [Min] [x]	Staking Side OD [Min]	Staking Side OD [Max]	Staking Side OD [Min]	Staking Side OD [Max]	Length - Overall [x]	Length - Overall [x]	Length - Overall
Harwin Inc. H2072Z01	Fork Single End	0.094 in	2.39 mm	Brass Alloy	Through Hole	0.083 "	0.079 "	2.11 mm	2.01 mm	Triple	Tin	0.351 in	8.91 mm	1.6 mm	0.063 in	1.87 mm	0.074 in	2.01 mm	0.079 in	2.54 mm	0.1 in	Non-Insulated	6.52 mm	0.257 in	3.96 mm	0.156 in	1.24 mm	0.049 in	0.046 in	1.17 mm	Swage
Harwin Inc. H2072-01	Fork Single End			Brass Alloy	Through Hole	0.089 "	0.085 "	2.26 mm	2.17 mm	Triple	Tin			1.6 mm	0.063 in					3.25 mm	0.128 in	Non-Insulated	6.35 mm	0.25 "	3.96 mm	0.156 in	1.53 mm	0.06 "	0.055 "	1.4 mm	Swage	0.099 in	2.51 mm	2.39 mm	0.094 in	2.03 mm	2.16 mm	0.08 in	0.085 in	0.344 in	8.74 mm
Harwin Inc. H2072ZL1	Fork Single End	0.125 in	3.18 mm	Brass Alloy	Through Hole	0.083 "	0.079 "	2.11 mm	2.01 mm	Triple	Tin	9.7 mm		2.39 mm	0.094 in	1.87 mm	0.074 in	2.01 mm	0.079 in	2.54 mm	0.1 in	Non-Insulated	6.52 mm	0.257 in	3.96 mm	0.156 in	1.22 mm	0.048 in	0.046 in	1.17 mm	Swage											0.382 "
