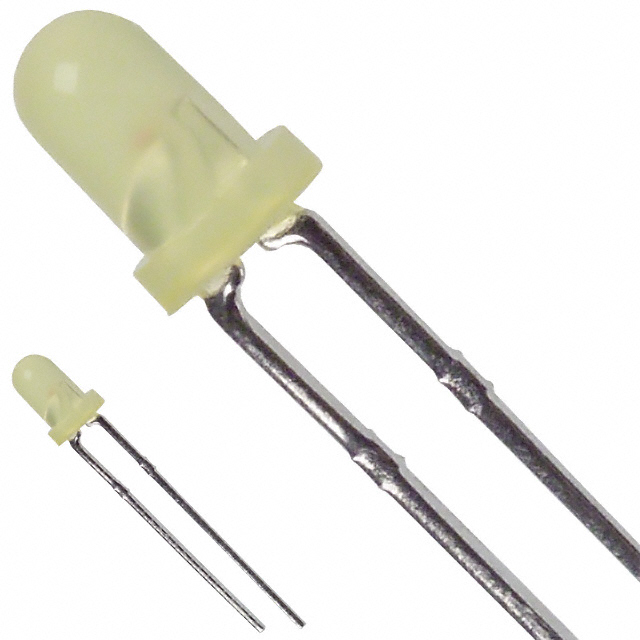

SSL-LX3052YD
ActiveLumex Opto/Components Inc.
LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSL-LX3052YD
ActiveLumex Opto/Components Inc.
LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SSL-LX3052YD |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 5.25 mm |
| Lens Color | Yellow |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 15 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Viewing Angle | 80 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.42 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| 5000 | $ 0.09 | |||
| 10000 | $ 0.09 | |||
| 25000 | $ 0.09 | |||
Description
General part information
SSL-LX3052 Series
Yellow LED Indication - Discrete 2.1V Radial
