MP1518DG-LF-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC LED DRVR RGLTR PWM 350MA 8QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP1518DG-LF-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC LED DRVR RGLTR PWM 350MA 8QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP1518DG-LF-Z |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 350 mA |
| Dimming | Analog, PWM |
| Frequency | 1.3 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

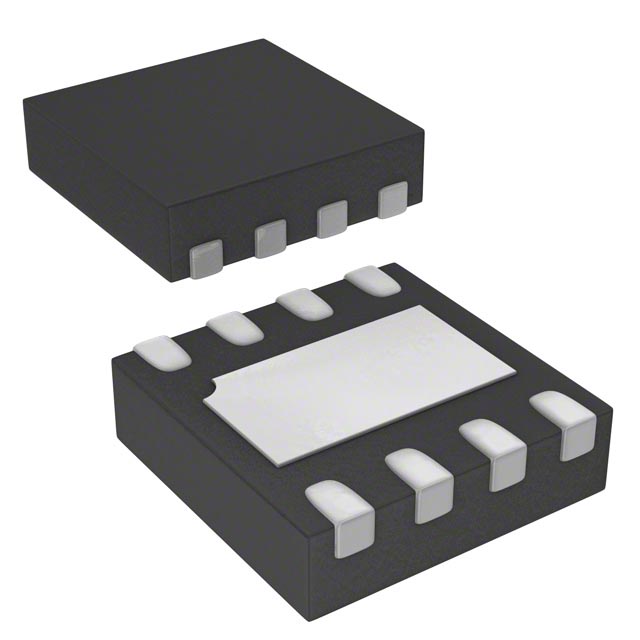

| Package / Case | 8-TFDFN Exposed Pad |
| Supplier Device Package | 8-QFN (2x2) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output | 25 V |
| Voltage - Supply (Max) [Max] | 6 V |
| Voltage - Supply (Min) [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.49 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.26 | |||
| 100 | $ 1.08 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.88 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.68 | |||
| Digi-Reel® | 1 | $ 1.49 | ||
| 10 | $ 1.34 | |||
| 25 | $ 1.26 | |||
| 100 | $ 1.08 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.88 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.68 | |||
| Tape & Reel (TR) | 5000 | $ 0.63 | ||
Description
General part information
MP1518 Series
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 350mA (Switch) 8-QFN (2x2)
