M7PPK-1510R

Active

3M (TC)

D-SUB CABLE MMM15K/MC16M/MMM15K

Search across all available documentation for this part.

Active

3M (TC)

D-SUB CABLE MMM15K/MC16M/MMM15K

Technical Specifications

Parameters and characteristics for this part

Part	Type	Shielding	Number of Positions	Usage	Contact Finish Thickness	Contact Finish Thickness	2nd Connector	Contact Finish	Length	Length	1st Connector	Color
3M (TC) M7PPK-0906J	DB9	Unshielded	9	Patch	0.76 Ám	30 Áin	Plug Male Pins	Gold	6 ft	1.83 m	Plug Male Pins
3M (TC) M7PPK-0906R	DB9	Unshielded	9	Patch	0.76 Ám	30 Áin	Plug Male Pins	Gold	6 ft	1.83 m	Plug Male Pins	Multiple Ribbon
3M (TC) M7PPK-1506J	DB15	Unshielded	15	Patch	0.76 Ám	30 Áin	Plug Male Pins	Gold	6 ft	1.83 m	Plug Male Pins
3M (TC) M7PPK-1510R	DB15	Unshielded	15	Patch	0.76 Ám	30 Áin	Plug Male Pins	Gold	10 ft	3.05 m	Plug Male Pins	Multiple Ribbon
3M (TC) M7PPK-2506J	DB25	Unshielded		Patch	0.76 Ám	30 Áin	Plug Male Pins	Gold	6 ft	1.83 m	Plug Male Pins
3M (TC) M7PPK-2510R	DB25	Unshielded		Patch	0.76 Ám	30 Áin	Plug Male Pins	Gold	10 ft	3.05 m	Plug Male Pins	Multiple Ribbon
3M (TC) M7PPK-3706R	DB37	Unshielded	37	Patch	0.76 Ám	30 Áin	Plug Male Pins	Gold	6 ft	1.83 m	Plug Male Pins	Multiple Ribbon
3M (TC) M7PPK-1506R	DB15	Unshielded	15	Patch	0.76 Ám	30 Áin	Plug Male Pins	Gold	6 ft	1.83 m	Plug Male Pins	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

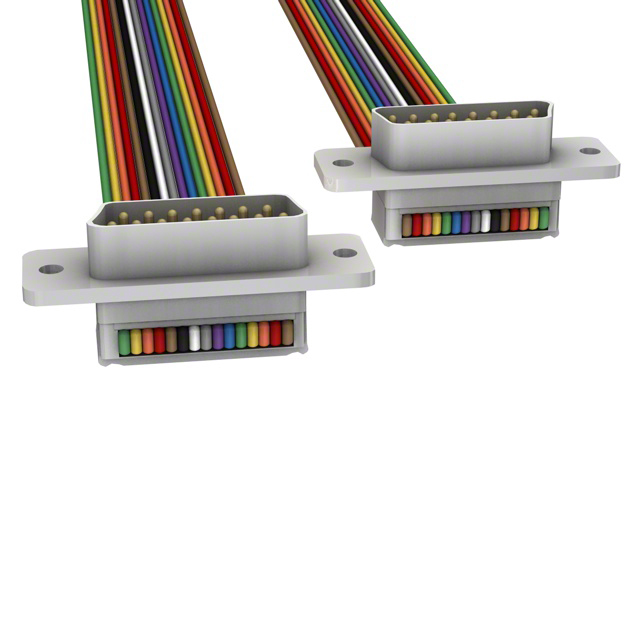

D-Sub Cable Assembly DB15 Multiple, Ribbon 10.00' (3.05m) Plug, Male Pins to Plug, Male Pins Unshielded

Technical documentation and resources
