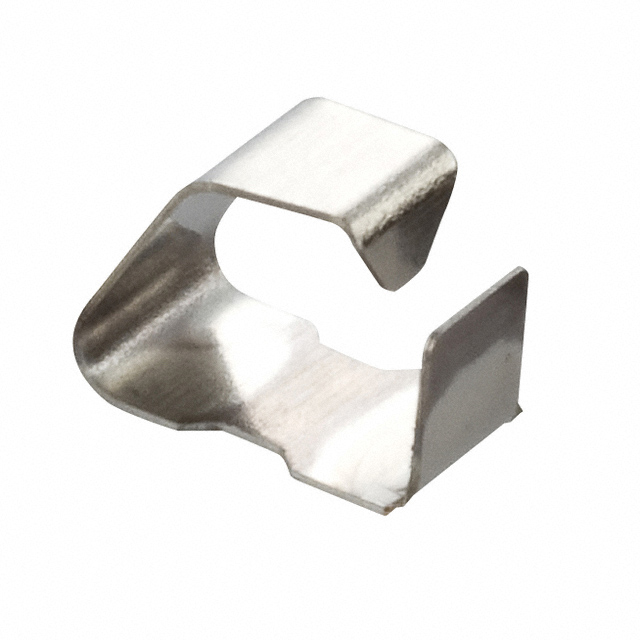

S7071-46R - S7071-46R

S7071-46R

Active
Harwin Inc.

CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetS1741-46R+3
S7071-46R - S7071-46R

S7071-46R

Active
Harwin Inc.

CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS

Deep-Dive with AI

DocumentsDatasheetS1741-46R+3

Technical Specifications

Parameters and characteristics for this part

SpecificationS7071-46R
Attachment MethodSolder
Height [z]2.5 mm
Height [z]0.098 in
Length3.5 mm
Length [x]0.138 "
MaterialCopper Alloy
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
PlatingNickel
Plating - Thickness1.3 µm
Plating - Thickness51.18 µin
TypeShield Finger, Pre-Loaded
Width [x]2 mm
Width [x]0.079 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.47
10$ 0.41
25$ 0.38
100$ 0.30
250$ 0.28
500$ 0.24
1000$ 0.18
2500$ 0.17
Digi-Reel® 1$ 0.47
10$ 0.41
25$ 0.38
100$ 0.30
250$ 0.28
500$ 0.24
1000$ 0.18
2500$ 0.17
Tape & Reel (TR) 6000$ 0.16
12000$ 0.15
30000$ 0.14
60000$ 0.14
NewarkEach (Supplied on Cut Tape) 2500$ 0.18

Description

General part information

S7071 Series

CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS
