CBRLDSH1-40 TR13 PBFREE
ActiveCentral Semiconductor Corp

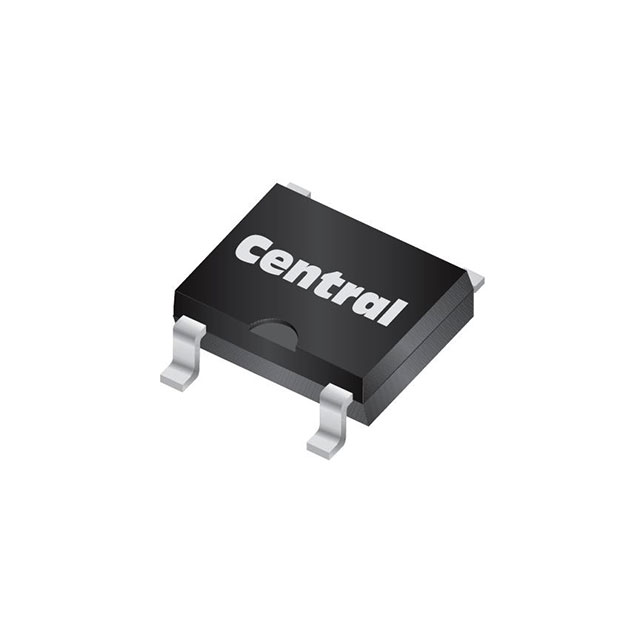

BRIDGE RECT 1P 40V 1A 4-LPDIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBRLDSH1-40 TR13 PBFREE
ActiveCentral Semiconductor Corp
BRIDGE RECT 1P 40V 1A 4-LPDIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBRLDSH1-40 TR13 PBFREE |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 100 çA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-LPDIP |
| Technology | Schottky |
| Voltage - Forward (Vf) (Max) @ If | 500 mV |
| Voltage - Peak Reverse (Max) | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.49 | |
| 10 | $ 0.94 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| 2000 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 1.49 | ||
| 10 | $ 0.94 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| 2000 | $ 0.43 | |||
| Tape & Reel (TR) | 4000 | $ 0.35 | ||
Description
General part information
CBRLDSH1 Series
Bridge Rectifier Single Phase Schottky 40 V Surface Mount 4-LPDIP
