C8109.41.03
ActivePrysmian Group
CABLE 2COND 22AWG RED SHLD 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C8109.41.03 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter | 0.122 in |
| Jacket (Insulation) Diameter | 3.1 mm |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket (Insulation) Thickness | 0.406 mm |
| Jacket (Insulation) Thickness | 0.016 in |
| Jacket Color | Red |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 500 ', 100 ft |
| Length [x] | 152.4 m, 30.5 m |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 771.53 | |
| 1 | $ 238.30 | |||
| 5 | $ 685.81 | |||
| 5 | $ 194.97 | |||
| 10 | $ 621.51 | |||
| 10 | $ 151.65 | |||
| Spool | 1000 | $ 1.16 | ||
| 3000 | $ 1.09 | |||
| 5000 | $ 1.04 | |||
Description
General part information
C8109 Series

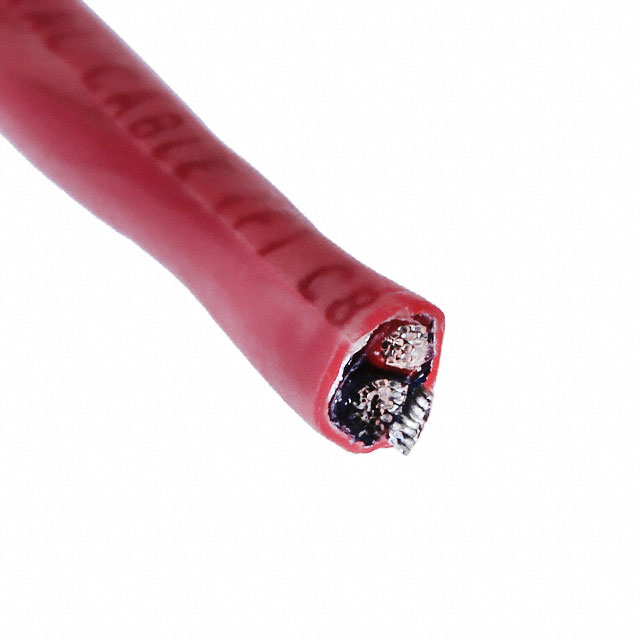

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Red 22 AWG Foil 500.0' (152.4m)
