T37001-08-0

Active

Curtis Industries

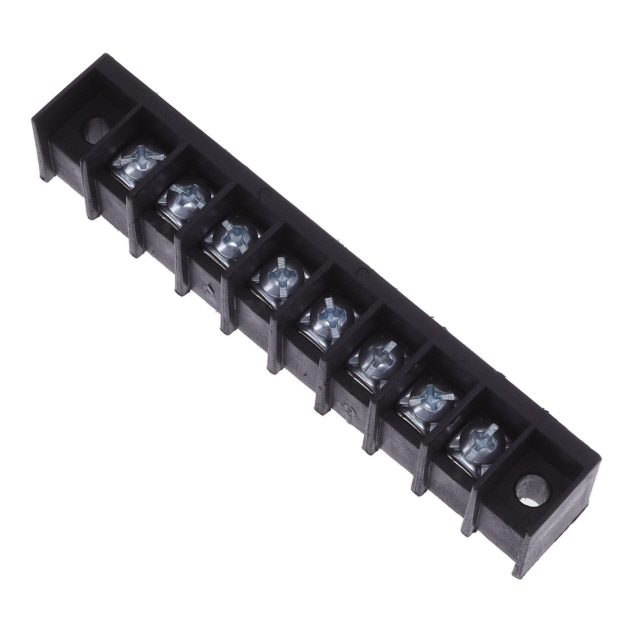

CONN BARRIER STRIP 8CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37001-08-0

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T37001-08-0

Barrier Type	3 Wall (Tri)
Bottom Termination	Closed
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits [custom]	8
Number of Rows	1
Number of Wire Entries	8
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

T37001 Series

Part	Material - Insulation	Operating Temperature	Pitch [x]	Pitch [x]	Mounting Type	Current Rating (Amps)	Barrier Type	Material Flammability Rating	Number of Circuits [custom]	Voltage Rating	Number of Wire Entries	Bottom Termination	Terminal Block Type	Top Termination	Wire Gauge [Min]	Wire Gauge [Max]	Features	Number of Rows	Number of Circuits
Curtis Industries T37001-08-0	Polypropylene (PP)	105 C	9.53 mm	0.375 in	Chassis Panel	20 A	3 Wall (Tri)	UL94 V-0	8	300 VDC	8	Closed	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	Flange	1
Curtis Industries T37001-18-0	Polypropylene (PP)	105 C	9.53 mm	0.375 in	Chassis Panel	20 A	3 Wall (Tri)	UL94 V-0		300 VDC	18	Closed	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	Flange	1	18
Curtis Industries T37001-06-0	Polypropylene (PP)	105 C	9.53 mm	0.375 in	Chassis Panel	20 A	3 Wall (Tri)	UL94 V-0		300 VDC	6	Closed	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	Flange	1	6
Curtis Industries T37001-21-0	Polypropylene (PP)	105 C	9.53 mm	0.375 in	Chassis Panel	20 A	3 Wall (Tri)	UL94 V-0		300 VDC	21	Closed	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	Flange	1	21
Curtis Industries T37001-09-0	Polypropylene (PP)	105 C	9.53 mm	0.375 in	Chassis Panel	20 A	3 Wall (Tri)	UL94 V-0		300 VDC	9	Closed	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	Flange	1
Curtis Industries T37001-19-0	Polypropylene (PP)	105 C	9.53 mm	0.375 in	Chassis Panel	20 A	3 Wall (Tri)	UL94 V-0		300 VDC	19	Closed	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	Flange	1	19
Curtis Industries T37001-15-0	Polypropylene (PP)	105 C	9.53 mm	0.375 in	Chassis Panel	20 A	3 Wall (Tri)	UL94 V-0		300 VDC	15	Closed	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	Flange	1	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.28
		10	$ 4.16
		25	$ 3.96
		50	$ 3.59
		100	$ 3.58

Description

General part information

T37001 Series

8 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available
