3240366

Active

Phoenix Contact

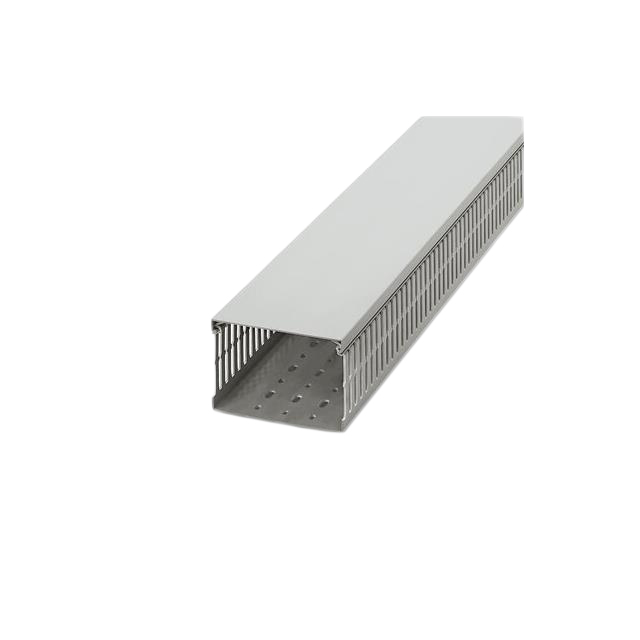

WIRE DUCTING & RACEWAYS CD-HF 120X80 2 METERS LONG, GRAY

Search across all available documentation for this part.

Active

Phoenix Contact

WIRE DUCTING & RACEWAYS CD-HF 120X80 2 METERS LONG, GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	3240366

Color	Gray
Features	Separate Snap in Lid (Included)
Height [diameter]	80 mm
Height [diameter]	3.15 in
Length [x]	2 m
Length [x]	6.56 ft
Material	PC/ABS, Halogen Free
Mounting Type	Rivet
Width [y]	4.724 "
Width [y]	120 mm
Wire Duct Type	2 Piece
Wire Duct Type	Solid (Raceway)

Part	Width [y]	Width [y]	Features	Material	Color	Wire Duct Type	Wire Duct Type	Length [x]	Length [x]	Height [diameter]	Height [diameter]	Mounting Type	Height [z]	Height [z]
Phoenix Contact 3240366	4.724 "	120 mm	Separate Snap in Lid (Included)	PC/ABS Halogen Free	Gray	2 Piece	Solid (Raceway)	2 m	6.56 ft	80 mm	3.15 in	Rivet
Phoenix Contact 3240365	4.724 "	120 mm	Separate Snap in Lid (Included)	PC/ABS Halogen Free	Gray	2 Piece	Solid (Raceway)	2 m	6.56 ft			Rivet	2.362 in	60 mm
Phoenix Contact 3240608	4.724 "	120 mm	Separate Snap in Lid (Included)	PC/ABS Halogen Free	Blue	2 Piece	Solid (Raceway)	2 m	6.56 ft	80 mm	3.15 in	Rivet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 88.25
Sager	N/A	8	$ 87.88
		16	$ 84.74

General part information

Wire Duct Gray Solid (Raceway), 2 Piece Rivet 6.56' (2.00m)

Technical documentation and resources
