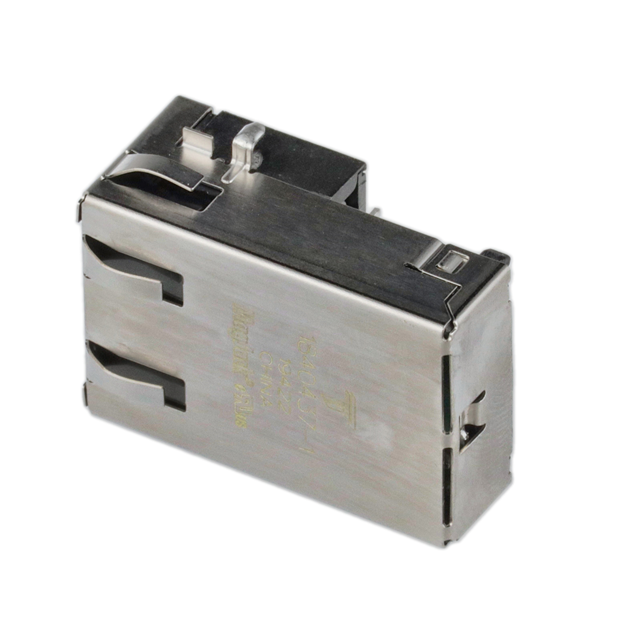

1840437-1
ActiveTRP Connector B.V.
CONN JACK 1 PORT 1000 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1840437-1
ActiveTRP Connector B.V.
CONN JACK 1 PORT 1000 BASE-T PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1840437-1 |
|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Brass |
| Features | Board Guide |
| Height Above Board | 0.29 in |
| Height Above Board | 7.37 mm |
| Housing Material | Nylon FR52, Polyamide (PA FR52) |
| LED Color | Orange - Yellow, Green |
| Mounting Type | Through Hole, Board Edge |
| Number of Cores per Jack | 8 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.17 | |
| 10 | $ 9.16 | |||
| 25 | $ 8.63 | |||
| 50 | $ 8.41 | |||
| Digi-Reel® | 1 | $ 10.17 | ||
| 10 | $ 9.16 | |||
| 25 | $ 8.63 | |||
| 50 | $ 8.41 | |||
| Tape & Reel (TR) | 120 | $ 8.18 | ||
| 240 | $ 7.30 | |||
| 600 | $ 6.86 | |||
| 840 | $ 6.41 | |||
| 1200 | $ 6.06 | |||
Description
General part information
1840437 Series
Port RJ45Board Edge, Through Hole 10/100/1000 Base-T, AutoMDIX
