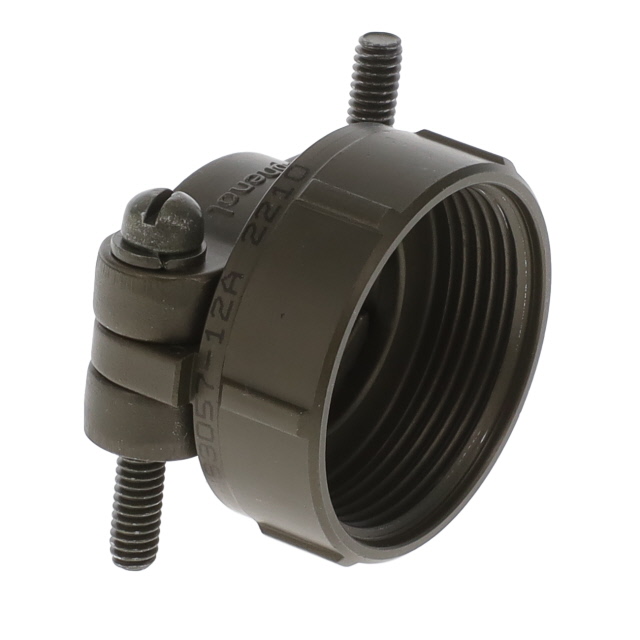

MS3057-12A

Active

Amphenol Interconnect India

CONN BACKSHELL

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN BACKSHELL

Technical Specifications

Parameters and characteristics for this part

Specification	MS3057-12A

Cable Exit	180 °
Cable Opening [custom]	11.3 mm
Cable Opening [custom]	0.445 in, 0.738 in
Cable Opening [custom]	18.75 mm
For Use With/Related Products	MIL-C-22992 Connectors
Plating	Cadmium
Primary Material	Metal
Shell Size - Insert	20, 22
Shielding	Unshielded
Type	Cable Clamp

Part	Primary Material	Plating	For Use With/Related Products	Type	Shielding	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Exit	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]	Thread Size	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Accessory Type	Shell Size - Insert
Amphenol Interconnect India MS3057-12A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded	11.3 mm	0.445 in 0.738 in	18.75 mm	180 °	20 22
Amphenol Interconnect India MS3057-4A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded				180 °	10S 10SL 12 12S 12SL	0.312 in	7.93 mm	5/8-24 UNEF
Amphenol Interconnect India MS3057-8A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded				180 °					0.316 in	0.515 in	13.08 mm	8.03 mm
Amphenol Interconnect India MS3057-6A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded	5.84 mm	0.23 in 0.428 in	10.87 mm	180 °	14 14S
Amphenol Interconnect India MS3057-10A			MS Series Connectors															Cable Clamp	18
Amphenol Interconnect India MS3057-3A			MS Series Connectors							8S								Cable Clamp
Amphenol Interconnect India MS3057-24A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded				180 °										36

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cable Clamp 20, 22
