19400101113

Active

HARTING Technology Group

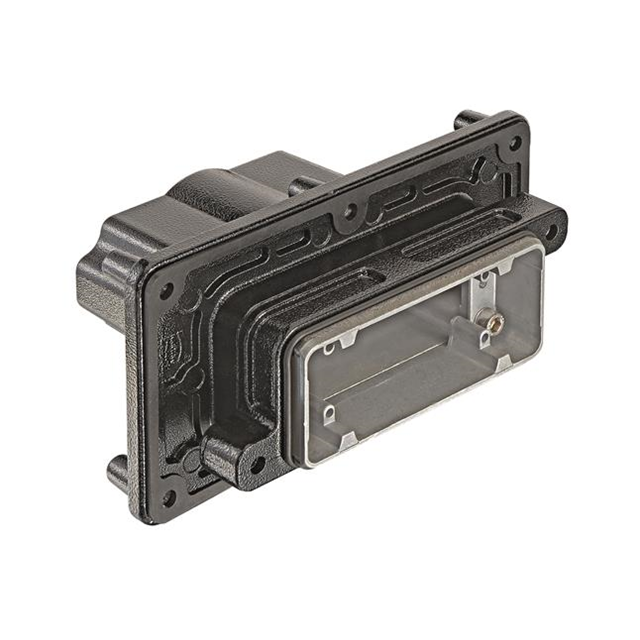

10B HPR PANEL FEED THROUGH HOUSING, SCREW LOCKING, INSIDE MOUNTING, 1XM40

Search across all available documentation for this part.

Active

HARTING Technology Group

10B HPR PANEL FEED THROUGH HOUSING, SCREW LOCKING, INSIDE MOUNTING, 1XM40

Technical Specifications

Parameters and characteristics for this part

Part	Size	Style	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Thread Size	Housing Color	Housing Material	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Housing Finish
HARTING Technology Group 19400101264	10B	Side Entry	Hood	125 °C	-40 °C	Screw Locks on Hood	M50	Black	Aluminum Die Cast
HARTING Technology Group 19400101118	10B	Top Entry	Base - Panel Mount	125 °C	-40 °C	Screw Locks on Hood		Black	Aluminum Die Cast	4.626 in	106 mm	117.5 mm	4.173 in	175 mm	6.89 in	Corrosion Resistant
HARTING Technology Group 19400101262	10B	Side Entry	Base - Box Mount	125 °C	-40 °C	Screw Locks on Hood	M32	Black	Aluminum Die Cast								Powder Coated
HARTING Technology Group 19400101113	10B	Top Entry	Base - Panel Mount	125 °C	-40 °C	Screw Locks on Hood		Black	Aluminum Die Cast							Feed Through	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Top Entry M40 10B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
