Technical Specifications
Parameters and characteristics for this part

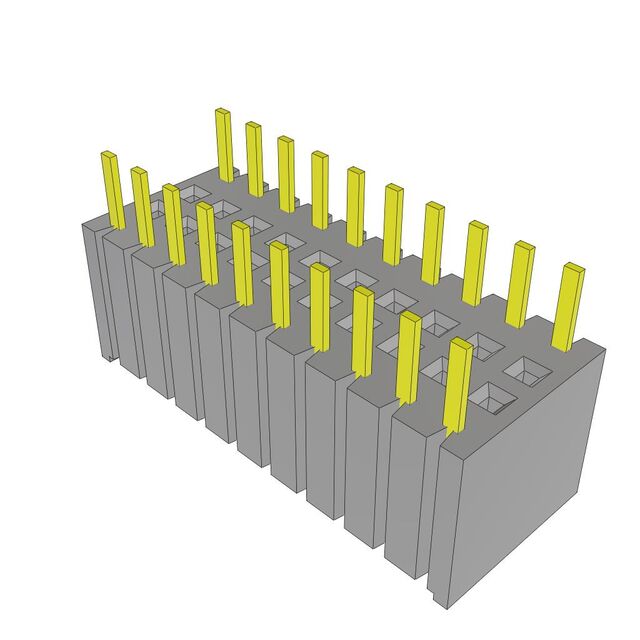

| Specification | BSW-110-24-L-D |
|---|---|
| Connector Type | Receptacle, Breakaway |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post [x] | 0.165 in |
| Contact Length - Post [x] | 4.19 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [custom] | 0.35 in |
| Insulation Height [custom] | 8.89 mm |
| Insulation Material | Polyethylene Terephthalate (PET), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Bottom Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
BSW-110 Series
| Part | Fastening Type | Insulation Height [custom] | Insulation Height [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating | Connector Type | Number of Positions | Insulation Color | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Termination | Number of Rows | Contact Material | Contact Type | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Push-Pull | 0.35 in | 8.89 mm | 2.54 mm | 0.1 in | Square | 0.165 in | 4.19 mm | UL94 V-0 | Breakaway Receptacle | 20 | Black | Polyethylene Terephthalate (PET) Glass Filled | 0.1 in | 2.54 mm | Tin | Solder | 2 | Phosphor Bronze | Female Socket | All | 105 ░C | -55 °C | Bottom Mount Through Hole | |||||
Samtec Inc. | Push-Pull | 0.35 in | 8.89 mm | 2.54 mm | 0.1 in | Square | 0.165 in | 4.19 mm | UL94 V-0 | Breakaway Receptacle | 20 | Black | Polyethylene Terephthalate (PET) Glass Filled | 0.1 in | 2.54 mm | Tin | Solder | 2 | Phosphor Bronze | Female Socket | All | 125 °C | -55 °C | Bottom Mount Through Hole | Gold | 10 çin | 0.25 çm | ||
Samtec Inc. | Push-Pull | 0.35 in | 8.89 mm | Square | UL94 V-0 | Breakaway Receptacle | 10 | Black | Polyethylene Terephthalate (PET) Glass Filled | 0.1 in | 2.54 mm | Tin | Solder | 1 | Phosphor Bronze | Female Socket | All | 125 °C | -55 °C | Bottom Mount Through Hole | Gold | 30 Áin | 0.76 Ám | 4.32 mm | 0.17 in | ||||
Samtec Inc. | Push-Pull | 0.35 in | 8.89 mm | Square | UL94 V-0 | Breakaway Receptacle | 10 | Black | Polyethylene Terephthalate (PET) Glass Filled | 0.1 in | 2.54 mm | Tin | Solder | 1 | Phosphor Bronze | Female Socket | All | 125 °C | -55 °C | Bottom Mount Through Hole | Gold | 10 çin | 0.25 çm | 4.32 mm | 0.17 in | ||||
Samtec Inc. | Push-Pull | 0.35 in | 8.89 mm | Square | 0.15 in | 3.81 mm | UL94 V-0 | Breakaway Receptacle | 10 | Black | Polyethylene Terephthalate (PET) Glass Filled | 0.1 in | 2.54 mm | Tin | Solder | 1 | Phosphor Bronze | Female Socket | All | 125 °C | -55 °C | Bottom Mount Through Hole | Gold | 30 Áin | 0.76 Ám | ||||
Samtec Inc. | Push-Pull | 0.35 in | 8.89 mm | 2.54 mm | 0.1 in | Square | 0.165 in | 4.19 mm | UL94 V-0 | Breakaway Receptacle | 20 | Black | Polyethylene Terephthalate (PET) Glass Filled | 0.1 in | 2.54 mm | Tin | Solder | 2 | Phosphor Bronze | Female Socket | All | 125 °C | -55 °C | Bottom Mount Through Hole | Gold | 10 çin | 0.25 çm | ||
Samtec Inc. | Push-Pull | 0.35 in | 8.89 mm | Square | UL94 V-0 | Breakaway Receptacle | 10 | Black | Polyethylene Terephthalate (PET) Glass Filled | 0.1 in | 2.54 mm | Tin | Solder | 1 | Phosphor Bronze | Female Socket | All | 105 ░C | -55 °C | Bottom Mount Through Hole | 4.32 mm | 0.17 in | |||||||
Samtec Inc. | Push-Pull | 0.35 in | 8.89 mm | Square | 0.125 in | 3.18 mm | UL94 V-0 | Receptacle | 10 | Black | Polyethylene Terephthalate (PET) Glass Filled | 0.1 in | 2.54 mm | Tin | Solder | 1 | Phosphor Bronze | Female Socket | All | 125 °C | -55 °C | Bottom Mount Through Hole | Gold | 20 µin | 0.51 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.63 | |
Description
General part information
BSW-110 Series
20 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Bottom Mount Gold
