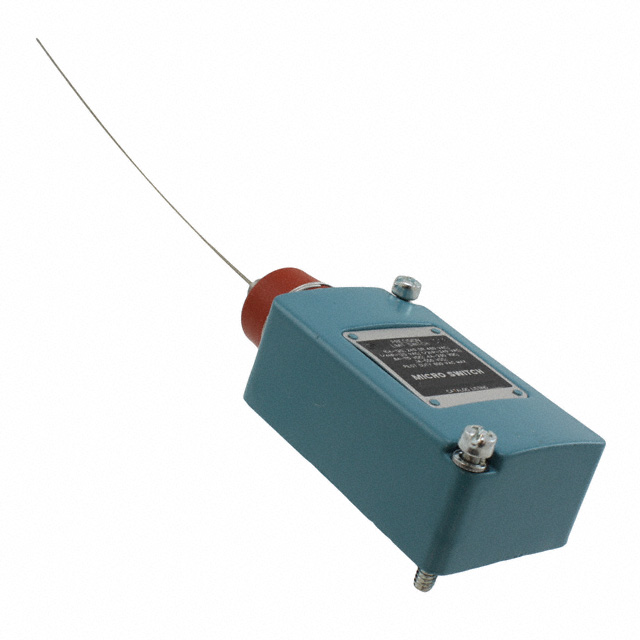

208LS125

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 10A 120V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Operating Position	Operating Position	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Type	Ingress Protection	Voltage Rating - AC	Termination Style	Voltage Rating - DC	Pretravel	Pretravel	Operating Force	Current Rating (Amps)
Honeywell Sensing and Productivity Solutions 208LS1	SPDT (DB/DM)	1.125 in	28.6 mm	Chassis Mount	-29 °C	71 °C	On-Mom	Flexible Cable	IP67 - Dust Tight Waterproof	120 V	Plug In	115 V	28.6 mm	1.125 in	141 gf	10 A 800 mA
Honeywell Sensing and Productivity Solutions 208LS125	SPDT (DB/DM)	2.5 in	63.5 mm	Chassis Mount	-29 °C	71 °C	On-Mom	Wire Lever	IP67 - Dust Tight Waterproof	120 V	Plug In	115 V	63.5 mm	2.5 in	28 gf	10 A 800 mA
Honeywell Sensing and Productivity Solutions 208LS152	SPDT (DB/DM)	1.125 in	28.6 mm	Chassis Mount	-29 °C	71 °C	On-Mom	Coil Spring	IP67 - Dust Tight Waterproof	120 V	Plug In	115 V	28.6 mm	1.125 in	141 gf	10 A 800 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT (DB/DM) Chassis Mount
