Q-3403M0003060I

Active

Amphenol Custom Cable

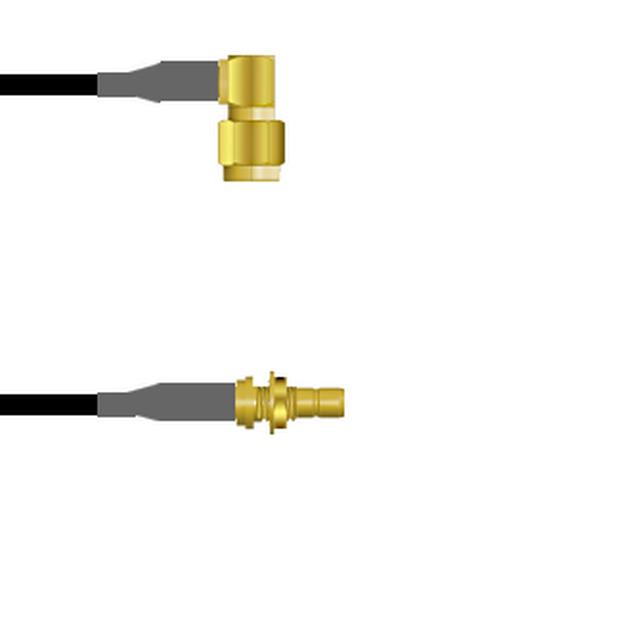

COAX CABLE SMA TO SMB 5'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO SMB 5'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3403M0003060I

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	SMA to SMB

Part	2nd Connector	Features	Color	Frequency - Max [Max]	Cable Type	2nd Connector Mounting Type	Connector Impedance	1st Connector	Overall Impedance	Style	2nd Connector Mounting Feature	1st Connector Mounting Type	2nd Contact Gender	Length	Length	Length	1st Contact Gender	Cable Impedance
Amphenol Custom Cable Q-3403M0003060I	SMB Jack	Shielded	Black	1 GHz	RG-174	Panel Mount	50 Ohms	Right Angle SMA Plug	50 Ohms	SMA to SMB	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Male	5 ft	1.5 m	5 '	Male	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMB RG-174 60.0" (1.5m) 5.0'
