25_N-50-2-14/133_NE

Active

Huber+Suhner, Inc.

25_N-50-2-14/133_NE

Deep-Dive with AI

Search across all available documentation for this part.

25_N-50-2-14/133_NE

Active

Huber+Suhner, Inc.

25_N-50-2-14/133_NE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	25_N-50-2-14/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1000 VDC

25_N-50 Series

Part	Dielectric Material	Mating Cycles	Center Contact Plating	Body Material	Center Contact Material	Cable Group	Connector Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Contact Termination	Housing Color	Mounting Feature	Body Finish	Impedance	Voltage Rating	Number of Ports	Connector Style
Huber+Suhner, Inc. 25_N-50-2-10/133_NE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Gold	Brass	Beryllium Copper Brass	RD-316	Female Socket Jack	11 GHz	-65 ░C	165 °C	Crimp	Crimp	Silver	Flange	White Bronze	50 Ohms	1000 VDC	1	N Type
Huber+Suhner, Inc. 25_N-50-2-9/133_NE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Gold	Brass	Beryllium Copper Brass	188 316 RG-174	Female Socket Jack	11 GHz	-65 ░C	165 °C	Crimp	Crimp	Silver	Flange	White Bronze	50 Ohms	1000 VDC	1	N Type
Huber+Suhner, Inc. 25_N-50-2-14/133_NE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Gold	Brass	Beryllium Copper	RG-405	Female Socket Jack	18 GHz	-65 ░C	165 °C	Solder	Solder	Silver	Flange	White Bronze	50 Ohms	1000 VDC	1	N Type
Huber+Suhner, Inc. 25_N-50-7-14/133_NE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Gold	Brass	Beryllium Copper	RG-214	Female Socket Jack	11 GHz	-65 ░C	165 °C	Crimp	Crimp	Silver	Flange	White Bronze	50 Ohms	1000 VDC	1	N Type
Huber+Suhner, Inc. 25_N-50-4-6/133_UH	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Gold	Brass	Beryllium Copper		Female Socket Jack	11 GHz	-65 ░C	165 °C	Crimp	Crimp	Silver	Flange	White Bronze	50 Ohms	1000 VDC	1	N Type
Huber+Suhner, Inc. 25_N-50-7-13/133_NE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Gold	Brass	Beryllium Copper	RG-213	Female Socket Jack	11 GHz	-65 ░C	165 °C	Crimp	Crimp	Silver	Flange	White Bronze	50 Ohms	1000 VDC	1	N Type
Huber+Suhner, Inc. 25_N-50-3-6/133_NE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Gold	Brass	Beryllium Copper	RG-58	Female Socket Jack	11 GHz	-65 ░C	165 °C	Crimp	Crimp	Silver	Flange	White Bronze	50 Ohms	1000 VDC	1	N Type
Huber+Suhner, Inc. 25_N-50-3-7/133_NE	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Gold	Brass	Beryllium Copper	223 RG-142	Female Socket Jack	11 GHz	-65 ░C	165 °C	Crimp	Crimp	Silver	Flange	White Bronze	50 Ohms	1000 VDC	1	N Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.79
		10	$ 25.21
		25	$ 24.12
		50	$ 23.35
		100	$ 22.57
		250	$ 21.32

Description

General part information

25_N-50 Series

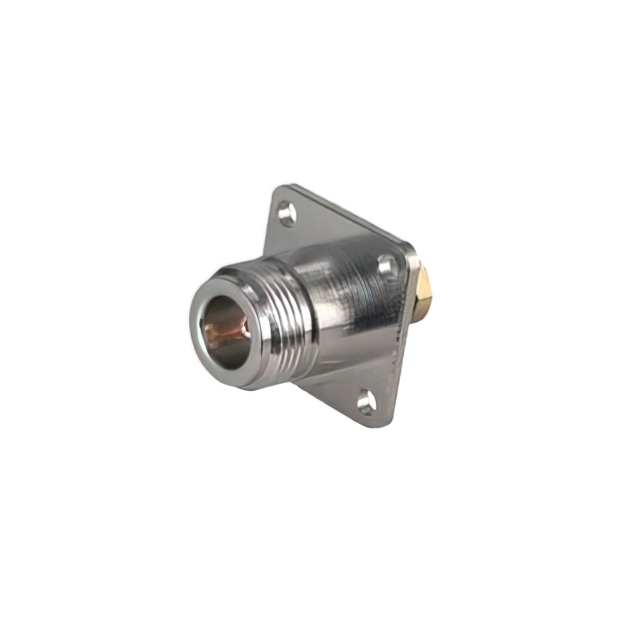

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

No documents available
