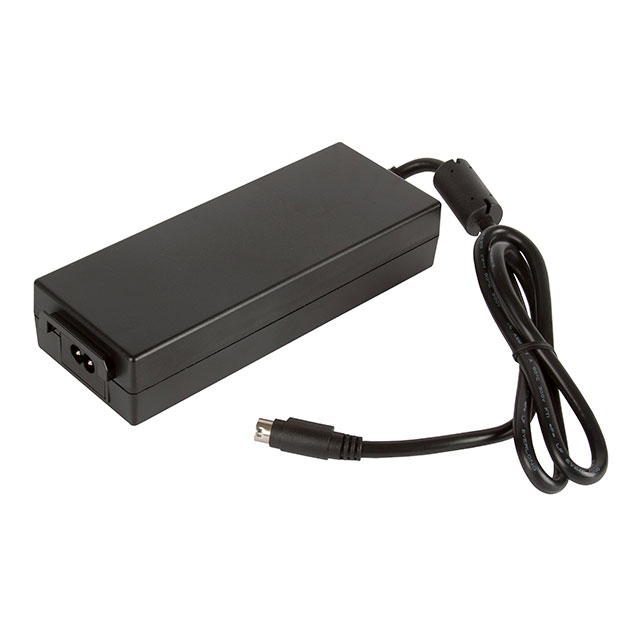

ALM150PS48C2-8

Active

XP POWER

AC/DC DESKTOP ADAPTER 48V 149W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ALM150PS48C2-8

Active

XP POWER

AC/DC DESKTOP ADAPTER 48V 149W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALM150PS48C2-8

Applications	ITE (Commercial), Medical
Approval Agency	PSE, CCC, CB, TUV, CSA, KC, UL, RCM
Cord Length	35.4 in
Cord Length	0.9 m
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	149 W
Region Utilized	International
Size / Dimension [x]	185.9 mm
Size / Dimension [x]	7.32 in
Size / Dimension [y]	2.83 in
Size / Dimension [y]	71.9 mm
Size / Dimension [z]	1.49 in
Size / Dimension [z]	37.8 mm
Standard Number	60950-1, 60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output	48 V

ALM150 Series

Part	Standard Number	Power (Watts)	Input Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Cord Length	Cord Length	No Load Power Consumption [Max]	Output Connector	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Voltage - Output	Efficiency	Form	Region Utilized	Current - Output (Max) [Max]	Input Type	Applications
XP POWER ALM150PS19C2-8	60601-1 60950-1 62368-1	150 W	IEC 320-C8	2.83 in	185.9 mm	7.32 in	71.9 mm	1.49 in	37.8 mm	CB CCC CSA KC PSE RCM TUV UL	35.4 in	0.9 m	150 mW	4 Pin	Power DIN	264 VAC	80 VAC	60 °C	19 V	CoC Tier 2 Level VI	Desktop (Class II)	International	7.9 A	Cord	ITE (Commercial) Medical
XP POWER ALM150PS19	62368-1	150 W	IEC 320-C14	2.83 in	185.9 mm	7.32 in	71.9 mm	1.49 in	37.8 mm	CB CE TUV UL	35.4 in	0.9 m	150 mW	4 Pin	Power DIN	264 VAC	80 VAC	60 °C	19 V	CoC Tier 2 Level VI	Desktop (Class I)	International	7.9 A	Cord	ITE (Commercial)
XP POWER ALM150PS48C2-8	60601-1 60950-1 62368-1	149 W	IEC 320-C8	2.83 in	185.9 mm	7.32 in	71.9 mm	1.49 in	37.8 mm	CB CCC CSA KC PSE RCM TUV UL	35.4 in	0.9 m	150 mW	4 Pin	Power DIN	264 VAC	80 VAC	60 °C	48 V	CoC Tier 2 Level VI	Desktop (Class II)	International		Cord	ITE (Commercial) Medical
XP POWER ALM150PS12C2-8	60601-1 60950-1 62368-1	150 W	IEC 320-C8	2.83 in	185.9 mm	7.32 in	71.9 mm	1.49 in	37.8 mm	CB CCC CSA KC PSE RCM TUV UL	35.4 in	0.9 m	150 mW	4 Pin	Power DIN	264 VAC	80 VAC	60 °C	12 V	CoC Tier 2 Level VI	Desktop (Class II)	International	12.5 A	Cord	ITE (Commercial) Medical
XP POWER ALM150PS15C2-8	60601-1 60950-1 62368-1	150 W	IEC 320-C8	2.83 in	185.9 mm	7.32 in	71.9 mm	1.49 in	37.8 mm	CB CCC CSA KC PSE RCM TUV UL	35.4 in	0.9 m	150 mW	4 Pin	Power DIN	264 VAC	80 VAC	60 °C	15 VDC	CoC Tier 2 Level VI	Desktop (Class II)	International	10 A	Cord	ITE (Commercial) Medical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 91.73

Description

General part information

ALM150 Series

48V 149 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
