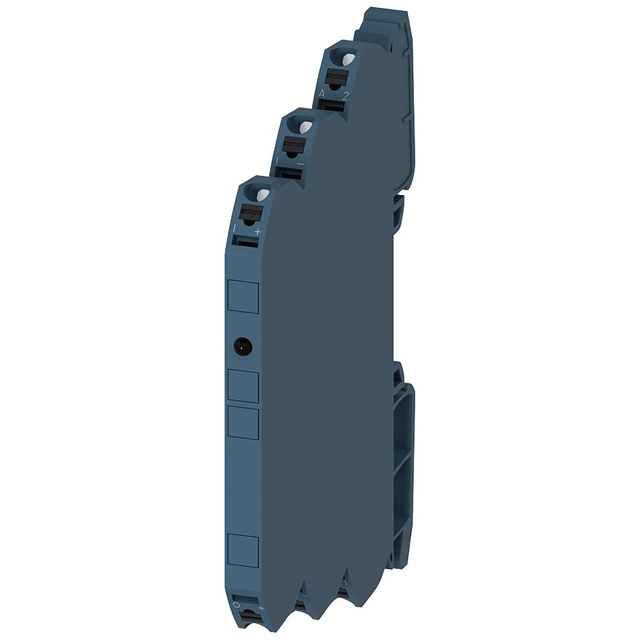

3RS70052KE00

Active

Siemens

SWITCHABLE MULTI-RANGE CNVRTR, 2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3RS70052KE00

Active

Siemens

SWITCHABLE MULTI-RANGE CNVRTR, 2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RS70052KE00

Input Range (Additional)	100 Ohm, 330 k Ohm
Input Range (Current, Voltage) [custom]	0 mA, 20 mA
Input Range (Current, Voltage) [custom]	0 V, 10 V
Input Type	Resistance, Current, Voltage
Isolation	50 V
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Termination Style	Spring Terminal
Type	Isolation Amplifier
Voltage - Supply	24 VAC

3RS7005 Series

Part	Output Range [Min]	Output Range [Max]	Input Range (Additional)	Input Range (Current, Voltage) [custom]	Input Range (Current, Voltage) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Output Type	Input Type	Type	Termination Style	Isolation	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Siemens 3RS70051FE00	0 mA 0 VDC	10 VDC 20 mA	100 Ohm 330 k Ohm	0 mA 20 mA	0 V 10 V	-25 °C	60 °C	24 VAC	Current Voltage	Current Resistance Voltage	Isolation Amplifier	Screw Terminal	50 V	DIN Rail
Siemens 3RS70051FW00	0 mA 0 VDC	10 VDC 20 mA	100 Ohm 330 k Ohm	0 mA 20 mA	0 V 10 V	-25 °C	60 °C		Current Voltage	Current Resistance Voltage	Signal Conditioner	Screw Terminal	300 V	DIN Rail	24 VAC	240 VAC
Siemens 3RS70052FE00	0 mA 0 VDC	10 VDC 20 mA	100 Ohm 330 k Ohm	0 mA 20 mA	0 V 10 V	-25 °C	60 °C	24 VAC	Current Voltage	Current Resistance Voltage	Isolation Amplifier	Spring Terminal	50 V	DIN Rail
Siemens 3RS70052FW00	0 mA 0 VDC	10 VDC 20 mA	100 Ohm 330 k Ohm	0 mA 20 mA	0 V 10 V	-25 °C	60 °C		Current Voltage	Current Resistance Voltage	Signal Conditioner	Spring Terminal	300 V	DIN Rail	24 VAC	240 VAC
Siemens 3RS70052KE00			100 Ohm 330 k Ohm	0 mA 20 mA	0 V 10 V	-25 °C	60 °C	24 VAC		Current Resistance Voltage	Isolation Amplifier	Spring Terminal	50 V	DIN Rail
Siemens 3RS70051KE00			100 Ohm 330 k Ohm	0 mA 20 mA	0 V 10 V	-25 °C	60 °C	24 VAC		Current Resistance Voltage	Isolation Amplifier	Screw Terminal	50 V	DIN Rail
Siemens 3RS70052KW00			100 Ohm 330 k Ohm	0 mA 20 mA	0 V 10 V	-25 °C	60 °C			Current Resistance Voltage	Signal Conditioner	Spring Terminal	300 V	DIN Rail	24 VAC	240 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 414.97

Description

General part information

3RS7005 Series

SWITCHABLE MULTI-RANGE CNVRTR, 2

Documents

Technical documentation and resources
