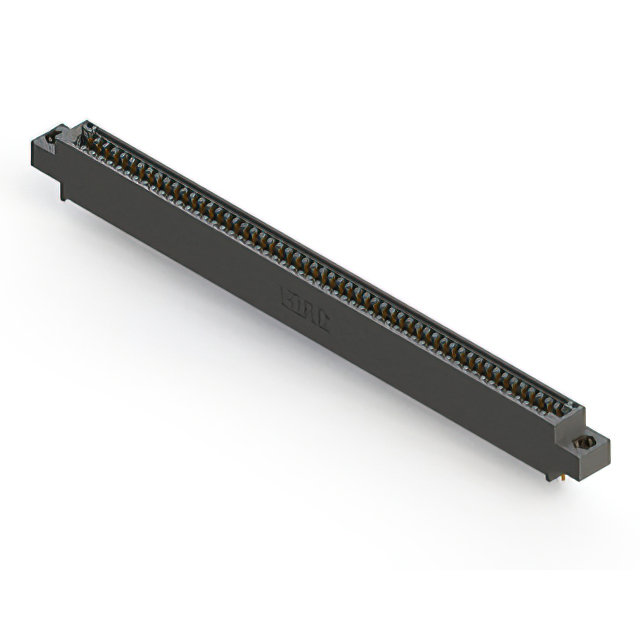

895-055-523-607

Active

EDAC Inc.

2.54MM STRAIGHT 55P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-055-523-607

Active

EDAC Inc.

2.54MM STRAIGHT 55P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-055-523-607

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	55 positions
Number of Positions/Bay/Row [custom]	55
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

895-055 Series

...

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Material - Insulation	Read Out	Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Gender	Card Type	Flange Feature	Flange Feature	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Termination Rows	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 895-055-523-602	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Solder	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge	3.25 mm	0.128 in	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions
EDAC Inc. 895-055-540-604	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Wire Wrap	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge			Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions	0.156 in	Top Mount Opening Unthreaded	3.96 mm
EDAC Inc. 895-055-540-402	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Wire Wrap	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge	3.25 mm	0.128 in	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions
EDAC Inc. 895-055-541-112	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Wire Wrap	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge			Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm
EDAC Inc. 895-055-524-102	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Solder	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge			Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 895-055-523-612	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Solder	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge	3.25 mm	0.128 in	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions		Side Mount Opening Unthreaded
EDAC Inc. 895-055-523-607	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Solder	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge			Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions		M3 Threaded Insert Top Mount Opening
EDAC Inc. 895-055-524-403	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Solder	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge			Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm
EDAC Inc. 895-055-524-603	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Solder	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge			Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm
EDAC Inc. 895-055-524-112	1	2.54 mm	0.1 in	Gold	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	Solder	Copper Alloy	10 Áin	0.25 Ám	Through Hole	Female	Non Specified - Single Edge			Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	55	1	55 positions	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 121.58
LCSC	Piece	1	$ 66.73
		200	$ 25.82
		500	$ 24.92
		1000	$ 24.47

Description

General part information

895-055 Series

55 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
