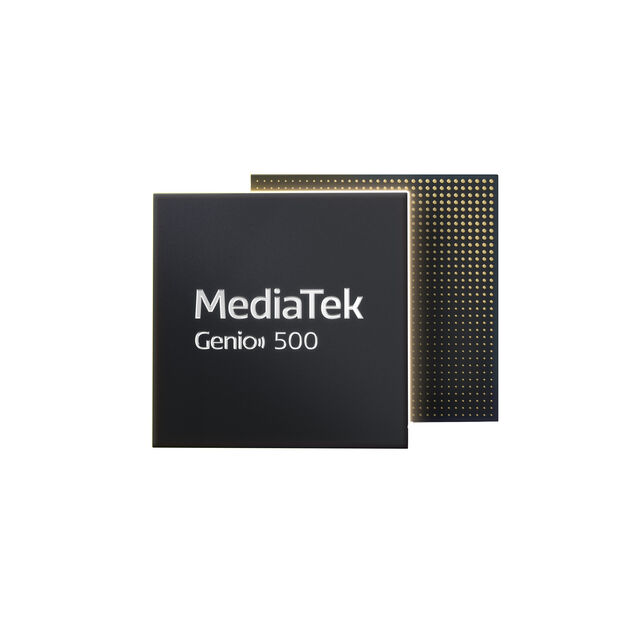

MT8385V/AZA
ActiveMediaTek
GENIO 500 SOC
Deep-Dive with AI
Search across all available documentation for this part.
MT8385V/AZA
ActiveMediaTek
GENIO 500 SOC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MT8385V/AZA |
|---|---|
| Data Rate (Max) | 400 Mbps |
| Frequency [Max] | 5 GHz |
| Frequency [Min] | 2.4 GHz |
| GPIO | 180 |
| Modulation | 8DPSK, DQPSK, GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 599-VFBGA |
| Power - Output | 23 dBmW |
| Protocol | 802.11a/b/g/n/ac, Bluetooth v5.x |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -165 dBm |
| Serial Interfaces | SPI, USB, UART, SDIO, I2C |
| Supplier Device Package | 599-VFBGA (11x11.8) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 1.26 V, 1.89 V |
| Voltage - Supply [Min] | 1.14 V, 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MT8385V/AZA
IC RF TxRx + MCU Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v5.x 2.4GHz ~ 5GHz 599-VFBGA
Documents
Technical documentation and resources
No documents available
