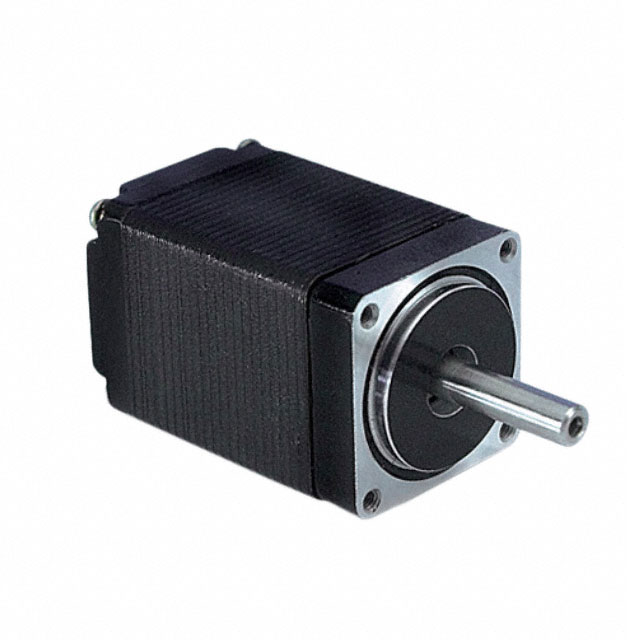

WO-211-20-02-RO
ActiveLIN ENGINEERING
STEPPER MOTOR
Deep-Dive with AI
Search across all available documentation for this part.
WO-211-20-02-RO
ActiveLIN ENGINEERING
STEPPER MOTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WO-211-20-02-RO |
|---|---|
| Coil Resistance | 1.9 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 1.3 A |
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 20 mm |
| Length - Shaft and Bearing [x] | 0.787 in |
| Mounting Hole Spacing | 23 mm |
| Mounting Hole Spacing | 0.906 in |
| NEMA Frame Size | 11 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 1.11 in, 28.2 mm |
| Size / Dimension [y] | 28.2 mm, 1.11 in |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 117.22 mNm |
| Torque - Holding (oz-in / mNm) | 16.6 oz-in |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 56.93 | |
| 5 | $ 52.32 | |||
| 10 | $ 50.45 | |||
| 32 | $ 47.47 | |||
| 64 | $ 45.77 | |||
| 128 | $ 44.13 | |||
Description
General part information
WO-211-20 Series
Bipolar Stepper Motor Frame Size 11 200.0 Step 1.3 A 24VDC
