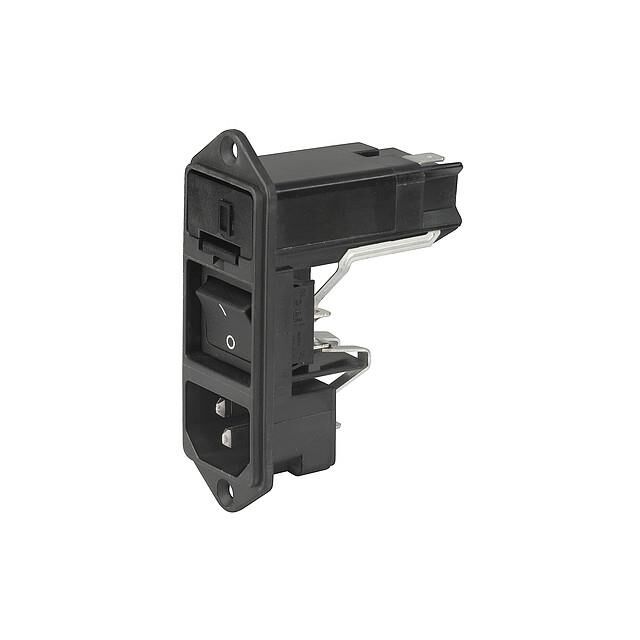

KD13.1133.151

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14

Technical Specifications

Parameters and characteristics for this part

Specification	KD13.1133.151

Accomodates a Fuse	True
Approval Agency	ENEC, CSA, CCC, UR
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Panel Cutout Dimensions [x]	27.5 mm
Panel Cutout Dimensions [y]	66.5 mm
Switch Features	Switch On-Off
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Filter Type	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Material Flammability Rating	Switch Features	Approval Agency	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Voltage Rating - Appliance Inlet	Accomodates a Fuse
SCHURTER Inc. KD13.1133.151	Receptacle Male Blades - Module	Unfiltered - Commercial	Drawer Sold Separate	10 A	UL94 V-0	Switch On-Off	CCC CSA ENEC UR	IEC 320-C14	27.5 mm	66.5 mm	IP40	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 28.50

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14
