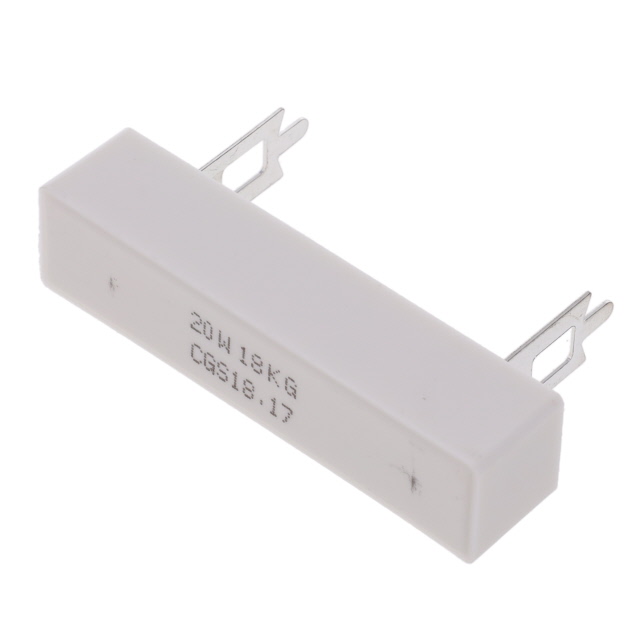

SQZR2018KG

Active

TE Connectivity Passive Product

RES 18K OHM 2% 20W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 18K OHM 2% 20W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SQZR2018KG

Composition	Metal Film
Features	Safety, Flame Proof, Moisture Resistant
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Number of Terminations	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	20 W
Resistance	18 kOhms
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	15 mm
Size / Dimension [y]	0.591 in
Supplier Device Package	Radial Lead
Temperature Coefficient	300 ppm/°C
Tolerance	2 %

Part	Composition	Temperature Coefficient	Features	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Resistance	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Supplier Device Package	Height - Seated (Max)	Height - Seated (Max) [Max]	Number of Terminations
TE Connectivity Passive Product SQZR2018KG	Metal Film	300 ppm/°C	Flame Proof Moisture Resistant Safety	2 %	-55 °C	250 °C	18 kOhms	20 W	15 mm	60 mm	0.591 in	2.362 in	Radial	Radial Lead	14 mm	0.551 "	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 kOhms ±2% 20W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Metal Film
