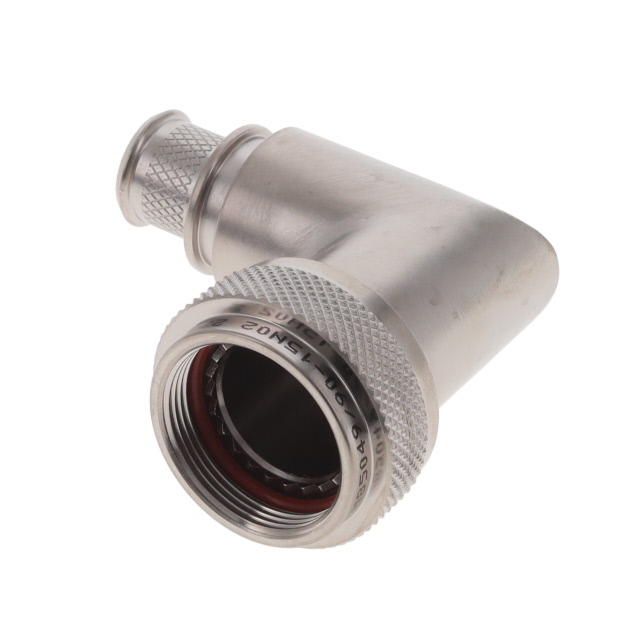

M85049/90-15N02
ActiveAmphenol Interconnect India
CONN BACKSH BANDING SZ15 D SIL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M85049/90-15N02 |
|---|---|
| Cable Exit | 90 ° |
| Cable Opening [diameter] | 11.43 mm |
| Cable Opening [diameter] | 0.45 in |
| Color | Silver |
| Diameter - Outside [diameter] | 1.281 in |
| Diameter - Outside [diameter] | 32.54 mm |
| Features | Self Locking |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV |
| Material | Aluminum Alloy |
| Plating | Electroless Nickel |
| Shell Size - Insert | 15 |
| Shell Size - Insert | D |
| Shielding | Unshielded |
| Type | Banding, Backshell |
M85049/90 Series
| Part | Plating | Shielding | Color | For Use With/Related Products | Type | Features | Shell Size - Insert | Cable Exit | Material | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Cable Opening [custom] | Cable Opening [custom] | Shell Size - Insert [custom] | Shell Size - Insert [custom] | Shell Size - Insert | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Interconnect India | Zinc Cobalt | Unshielded | Black | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | 17 E | 90 ° | Aluminum Alloy | 1.41 in | 35.81 mm | 12.95 mm | 0.51 in | |||||
Amphenol Interconnect India | Cadmium | Unshielded | Olive Drab | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | 90 ° | Aluminum Alloy | 0.859 in | 21.82 mm | 6.6 mm | 0.26 in | 9 | A | ||||
Amphenol Interconnect India | Cadmium | Unshielded | Olive Drab | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | C | 90 ° | Aluminum Alloy | 1.156 in | 29.36 mm | 8.13 mm | 0.32 in | 13 | ||||
Amphenol Interconnect India | Cadmium | Unshielded | Olive Drab | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | B | 90 ° | Aluminum Alloy | 0.986 in | 25.04 mm | 8.13 mm | 0.32 in | 11 | ||||
Amphenol Interconnect India | Electroless Nickel | Unshielded | Silver | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | D | 90 ° | Aluminum Alloy | 1.281 in | 32.54 mm | 15 | 11.43 mm | 0.45 in | ||||
Amphenol Interconnect India | Electroless Nickel | Unshielded | Silver | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | 90 ° | Aluminum Alloy | 0.859 in | 21.82 mm | 6.6 mm | 0.26 in | 9 | A | ||||
Amphenol Interconnect India | Zinc Cobalt | Unshielded | Black | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | 90 ° | Aluminum Alloy | 0.86 in | 21.84 mm | 6.6 mm | 0.26 in | 9 | A | ||||
Amphenol Interconnect India | Zinc Cobalt | Unshielded | Black | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | C | 90 ° | Aluminum Alloy | 1.16 in | 29.46 mm | 13 | 11.43 mm | 0.45 in | ||||
Amphenol Interconnect India | Zinc Cobalt | Unshielded | Black | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | J | 90 ° | Aluminum Alloy | 1.89 " | 48.01 mm | 25.65 mm | 1.01 in | 25 | ||||
Amphenol Interconnect India | Zinc Cobalt | Unshielded | Black | MIL-DTL-38999 Series III IV | Backshell Banding | Self Locking | J | 90 ° | Aluminum Alloy | 1.89 " | 48.01 mm | 25 | 19.3 mm | 0.76 in |
