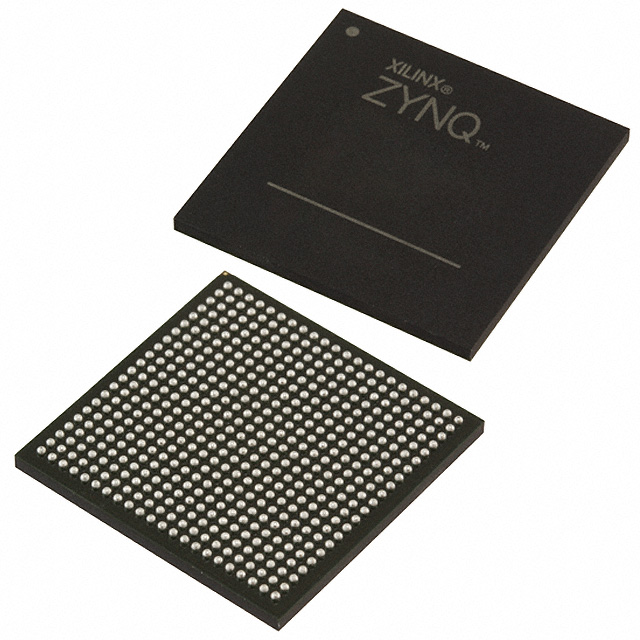

XC7Z020-2CLG484CES

Obsolete

AMD

IC SOC CORTEX-A9 766MHZ 484BGA

Deep-Dive with AI

Search across all available documentation for this part.

XC7Z020-2CLG484CES

Obsolete

AMD

IC SOC CORTEX-A9 766MHZ 484BGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC7Z020-2CLG484CES

Architecture	MCU, FPGA
Connectivity	UART/USART, EBI/EMI, USB OTG, MMC/SD/SDIO, I2C, SPI, CANbus, Ethernet
Core Processor	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
Number of I/O	130 I/O
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	CSPBGA, 484-LFBGA
Peripherals	DMA
Primary Attributes	85K, Artix™-7 FPGA
RAM Size	256 KB
Speed	766 MHz
Supplier Device Package	484-CSPBGA (19x19)

XC7Z020 Series

Part	Suggested Programming Environment	Contents	Utilized IC / Part	Note	Interconnect System	For Use With/Related Products	Platform	Type	Peripherals	Operating Temperature [Min]	Operating Temperature [Max]	Connectivity	Primary Attributes	Package / Case	Architecture	Core Processor	Supplier Device Package	Number of I/O	RAM Size	Speed
AMD EK-Z7-ZC702-G-J	ISE Vivado	Board(s) Cable(s) Accessories	XC7Z020	J = Japan version does not ship with a power supply	FMC Pmod	XC7Z020	Zynq-7000 AP SoC ZC702 Japan	FPGA + MCU/MPU SoC
AMD XC7Z020-1CLG484CES									DMA	0 °C	85 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	85K Artix™-7 FPGA	484-LFBGA CSPBGA	MCU FPGA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	484-CSPBGA (19x19)	130 I/O	256 KB	667 MHz
AMD XC7Z020-1CLG400CES									DMA	0 °C	85 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	85K Artix™-7 FPGA	400-LFBGA CSPBGA	MCU FPGA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	400-CSPBGA (17x17)	130 I/O	256 KB	667 MHz
AMD XC7Z020-3CLG400E									DMA	0 °C	100 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	85K Artix™-7 FPGA	400-LFBGA CSPBGA	MCU FPGA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	400-CSPBGA (17x17)	130 I/O	256 KB	866 MHz
AMD XC7Z020-2CLG484CES									DMA	0 °C	85 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	85K Artix™-7 FPGA	484-LFBGA CSPBGA	MCU FPGA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	484-CSPBGA (19x19)	130 I/O	256 KB	766 MHz
AMD XC7Z020-3CLG484E									DMA	0 °C	100 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	85K Artix™-7 FPGA	484-LFBGA CSPBGA	MCU FPGA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	484-CSPBGA (19x19)	130 I/O	256 KB	866 MHz
AMD XC7Z020-L1CLG400I									DMA	-40 C	100 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	85K Artix™-7 FPGA	400-LFBGA CSPBGA	MCU FPGA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	400-CSPBGA (17x17)	130 I/O	256 KB	667 MHz
AMD XC7Z020-1CLG400I									DMA	-40 C	100 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	85K Artix™-7 FPGA	400-LFBGA CSPBGA	MCU FPGA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	400-CSPBGA (17x17)	130 I/O	256 KB	667 MHz
AMD DK-Z7-VIDEO-CES-G	ISE Vivado	Accessories Board(s) Cable(s) Power Supply	XC7Z020		FMC Pmod	XC7Z020	Zynq-7000 AP SoC ZC702 Video and Imaging CES	FPGA + MCU/MPU SoC
AMD XC7Z020-2CLG484E									DMA	0 °C	100 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	85K Artix™-7 FPGA	484-LFBGA CSPBGA	MCU FPGA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	484-CSPBGA (19x19)	130 I/O	256 KB	766 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XC7Z020 Series

Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Zynq®-7000 Artix™-7 FPGA, 85K Logic Cells 766MHz 484-CSPBGA (19x19)

Documents

Technical documentation and resources

No documents available
