DC0022/01-TI900-0.12-2A

Active

t-Global Technology

THERM PAD 57.15MMX44.45MM W/ADH

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 57.15MMX44.45MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Part	Outline [y]	Outline [x]	Type	Shelf Life Start	Adhesive	Color	Thickness [custom]	Thickness [custom]	Shape	Thermal Conductivity	Shelf Life	Usage	Backing, Carrier	Material	Thickness [x]	Thickness [x]
t-Global Technology DC0022/01-TG-A486G-0.3-2A	44.45 mm	57.15 mm	Die-Cut Pad Sheet	Date of Purchase	Adhesive - Both Sides	Gray	0.305 mm	0.012 "	Rectangular	6 W/m-K	12 Months	Power Module
t-Global Technology DC0022/01-TG-A373F-0.25-2A	44.45 mm	57.15 mm	Die-Cut Pad Sheet		Adhesive - Both Sides	Yellow	0.254 mm	0.01 in	Rectangular	1.4 W/m-K	12 Months	Power Module
t-Global Technology DC0022/01-TI900-0.12-2A	44.45 mm	57.15 mm	Die-Cut Pad Sheet		Adhesive - Both Sides	White			Rectangular	1.8 W/m-K	24 Months	Power Module	Viscose	Silicone	0.005 in	0.127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 7.83

General part information

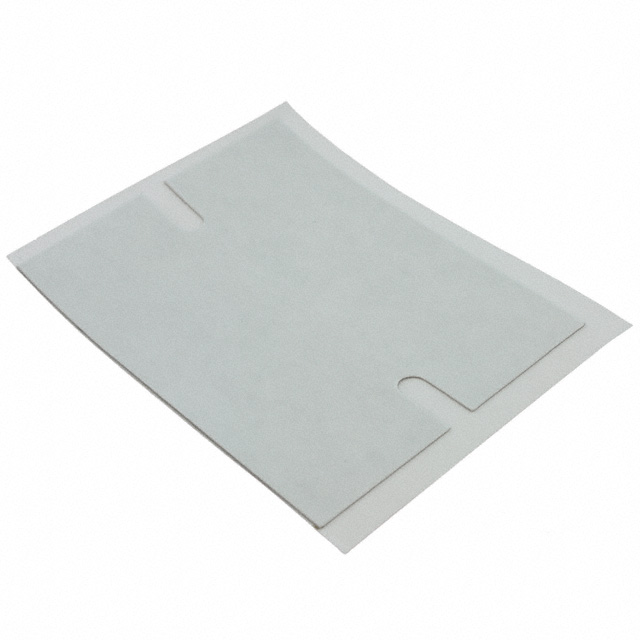

Thermal Pad White 57.15mm x 44.45mm Rectangular Adhesive - Both Sides
