0330001003

Active

Molex

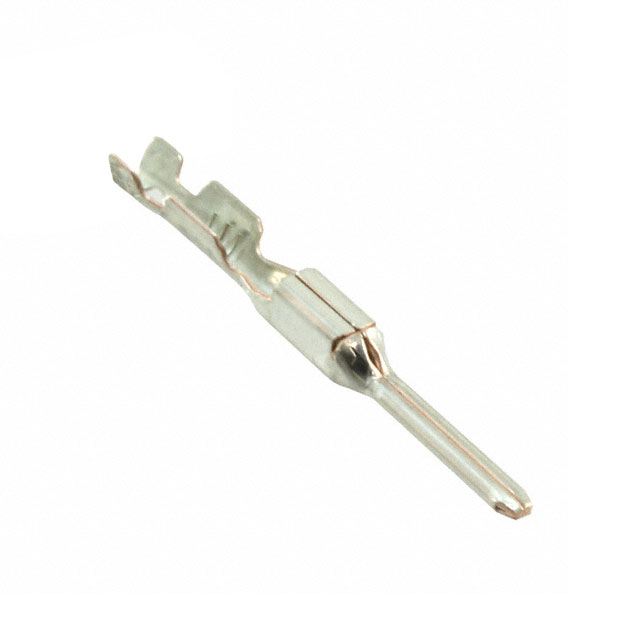

AUTOMOTIVE CONNECTORS MX150 CRMP 22AWG L PAYOFF SN

Search across all available documentation for this part.

Active

Molex

AUTOMOTIVE CONNECTORS MX150 CRMP 22AWG L PAYOFF SN

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge	Contact Termination	Contact Finish	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness
Molex 0330001003	22 AWG	Crimp	Tin	Blade
Molex 0330000004		Crimp	Tin	Blade	20 AWG	22 AWG	0.51 µm	20 µin
Molex 0330001001	13.5 AWG	Crimp	Tin	Blade
Molex 0330001002		Crimp	Tin	Blade	16 AWG	20 AWG	0.5 µm	19.7 µin
Molex 0330000003	22 AWG	Crimp	Tin	Blade			0.51 µm	20 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blade Contact Tin 22 AWG Crimp

Technical documentation and resources

No documents available
