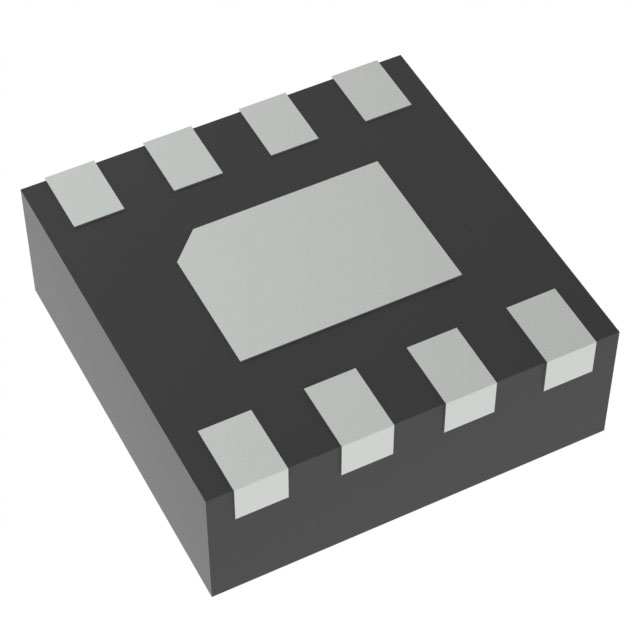

MC100LVEL12MNR4G

Obsolete

ON Semiconductor

IC BUFFER DVR ECL NON-INV

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC BUFFER DVR ECL NON-INV

Technical Specifications

Parameters and characteristics for this part

Part	Logic Type	Mounting Type	Number of Inputs	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Supplier Device Package	Package / Case [custom]	Package / Case
ON Semiconductor MC100LVEL12DR2G	NOR/OR Gate	Surface Mount	2	8-SOIC	3.9 mm	0.154 in	-3.8 V	-3 V	Differential	85 °C	-40 °C	1	8-SOIC
ON Semiconductor MC100LVEL12MNR4G	NOR/OR Gate	Surface Mount	2	8-VFDFN Exposed Pad			-3.8 V	-3 V	Differential	85 °C	-40 °C	1	8-DFN (2x2)
ON Semiconductor MC100LVEL12DG	NOR/OR Gate	Surface Mount	2	8-SOIC	3.9 mm	0.154 in	-3.8 V	-3 V	Differential	85 °C	-40 °C	1	8-SOIC
ON Semiconductor MC100LVEL12DT	NOR/OR Gate	Surface Mount	2	8-MSOP 8-TSSOP			-3.8 V	-3 V	Differential	85 °C	-40 °C	1	8-TSSOP	0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

NOR/OR Gate Configurable 1 Circuit 2 Input 8-DFN (2x2)
