Q-0D00D0003108i

Active

Amphenol Custom Cable

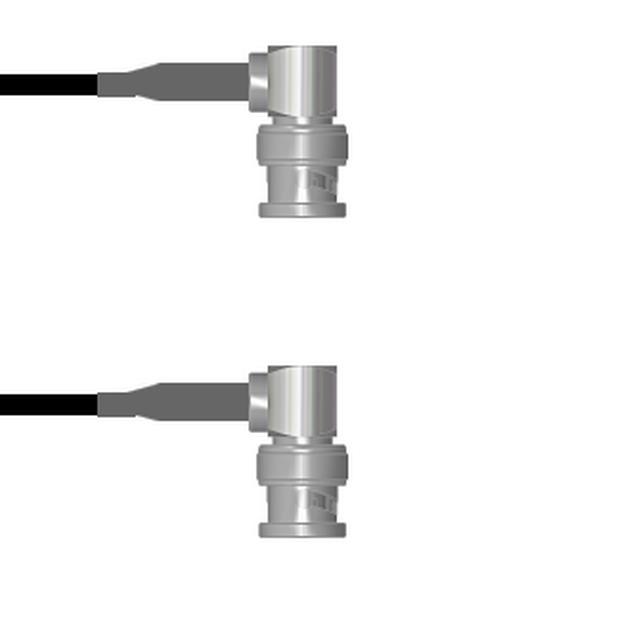

CBL ASSY BNC PLUG TO PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D00D0003108i

Active

Amphenol Custom Cable

CBL ASSY BNC PLUG TO PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D00D0003108i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-0D00D0 Series

Part	Color	2nd Connector Mounting Type	2nd Connector	Style	1st Connector	1st Connector Mounting Type	Length	Length	Length	Cable Type	1st Contact Gender	Features	2nd Contact Gender	Frequency - Max [Max]	Overall Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-0D00D0005003M	Copper	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)	3 m	118.1 in	9.8 '	RG-316	Male	Shielded	Male	4 GHz	50 Ohms
Amphenol Custom Cable Q-0D00D0005006i	Copper	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)	152.4 mm	6 in		RG-316	Male	Shielded	Male	4 GHz	50 Ohms
Amphenol Custom Cable Q-0D00D0003009i	Black	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)	228.6 mm	9 "		RG-174	Male	Shielded	Male	4 GHz	50 Ohms
Amphenol Custom Cable Q-0D00D0003018i	Black	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)				RG-174	Male	Shielded	Male	4 GHz	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D00D00050.5M	Copper	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)	50 cm	19.69 "		RG-316	Male	Shielded	Male	4 GHz	50 Ohms
Amphenol Custom Cable Q-0D00D0005009i	Copper	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)	228.6 mm	9 "		RG-316	Male	Shielded	Male	4 GHz	50 Ohms
Amphenol Custom Cable Q-0D00D0003084i	Black	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)	2.1 m	84 in	7 ft	RG-174	Male	Shielded	Male	4 GHz	50 Ohms
Amphenol Custom Cable Q-0D00D0003036i	Black	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)	91.44 cm	36 in		RG-174	Male	Shielded	Male	4 GHz	50 Ohms
Amphenol Custom Cable Q-0D00D00051.5M	Copper	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)	1.5 m	59.1 in	4.9 ft	RG-316	Male	Shielded	Male	4 GHz	50 Ohms
Amphenol Custom Cable Q-0D00D0003108i	Black	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to BNC	BNC Plug Right Angle	Free Hanging (In-Line)	2.7 m	108 in	9 ft	RG-174	Male	Shielded	Male	4 GHz	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.22
		25	$ 78.65
		50	$ 77.07
		100	$ 75.50
		250	$ 73.93

Description

General part information

Q-0D00D0 Series

Cable Assembly Coaxial BNC to BNC RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
