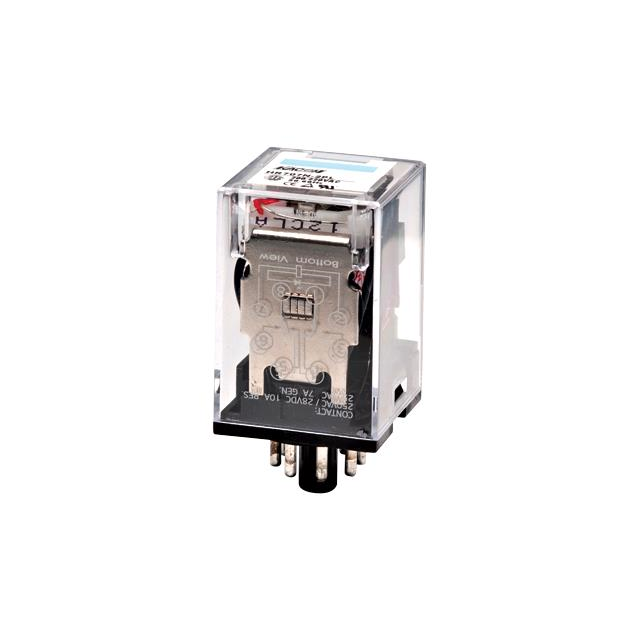

HR707N-2PLD-24VDC

Active

Kacon

RELAY GEN PURPOSE DPDT 10A 24V

Search across all available documentation for this part.

Active

Kacon

RELAY GEN PURPOSE DPDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Features	Contact Material	Contact Form	Operate Time	Relay Type	Contact Rating (Current)	Coil Voltage	Release Time	Coil Current
Kacon HR707N-2PL-24VAC	Socketable	Plug In 8 Pin (Octal)	-10 °C	40 °C	250 VAC 250 VDC	Lighted Indicator	Gold (Au) Silver (Ag)	DPDT (2 Form C)	30 ms	General Purpose	10 A	24 VAC	20 ms	100 mA
Kacon HR707N-2PLD-24VDC	Socketable	Plug In 8 Pin (Octal)	-10 °C	40 °C	250 VAC 250 VDC	Diode Lighted Indicator	Gold (Au) Silver (Ag)	DPDT (2 Form C)	30 ms	General Purpose	10 A	24 VDC	20 ms	66.7 mA
Kacon HR707N-3PL-110VAC	Socketable	Plug In 11 Pin (Octal)	-10 °C	40 °C	250 VAC 250 VDC	Lighted Indicator	Gold (Au) Silver (Ag)	3PDT (3 Form C)	30 ms	General Purpose	10 A	110 VAC/DC	20 ms	21.8 mA
Kacon HR707N-2PLC-110VAC	Socketable	Plug In 8 Pin (Octal)	-10 °C	40 °C	250 VAC 250 VDC	Lighted Indicator Surge Protection	Gold (Au) Silver (Ag)	DPDT (2 Form C)	30 ms	General Purpose	10 A	110 VAC/DC	20 ms	21.8 mA
Kacon HR707N-2PL-110VAC	Socketable	Plug In 8 Pin (Octal)	-10 °C	40 °C	250 VAC 250 VDC	Lighted Indicator	Gold (Au) Silver (Ag)	DPDT (2 Form C)	30 ms	General Purpose	10 A	110 VAC/DC	20 ms	21.8 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.48

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
