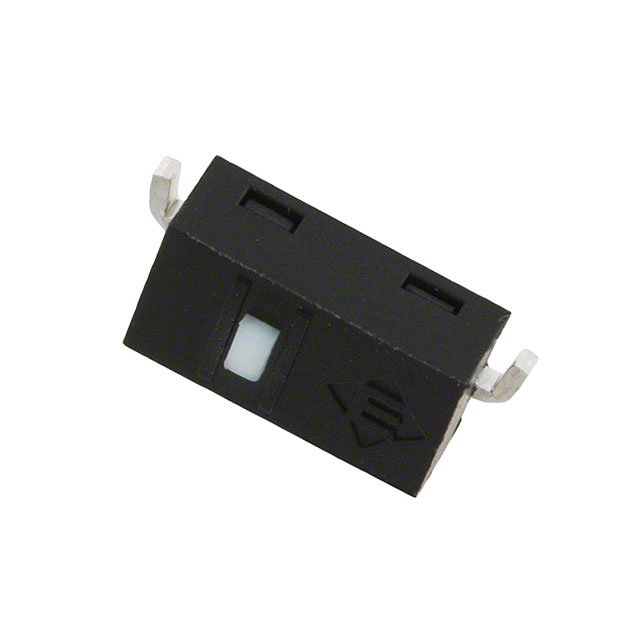

TS20100F070S
ActiveE-Switch
SWITCH SNP ACT SPST-NO 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
TS20100F070S
ActiveE-Switch
SWITCH SNP ACT SPST-NO 0.1A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TS20100F070S |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Mechanical Life | 3000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 70 gf |
| Operating Position | 3.3 mm |
| Operating Position | 0.13 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pretravel | 0.2 mm |
| Pretravel | 0.008 in |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.78 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.50 | |||
| Tape & Reel (TR) | 1200 | $ 0.39 | ||
Description
General part information
TS1010 Series
Switch SPST-NO Surface Mount
Documents
Technical documentation and resources
No documents available
