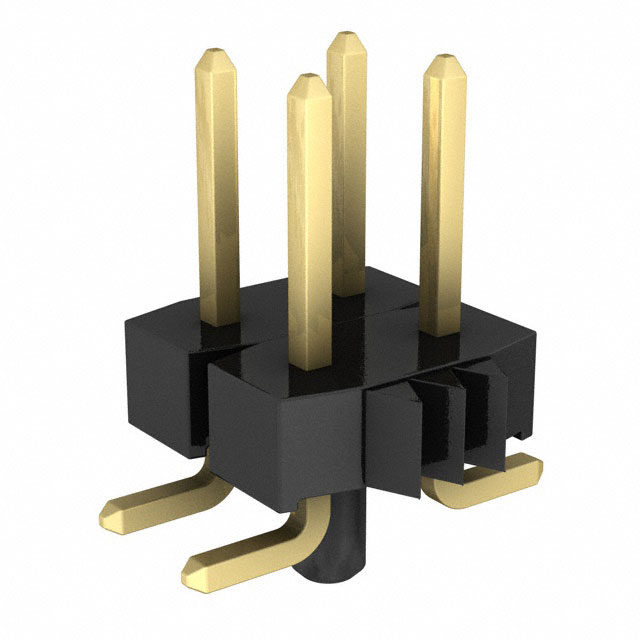

M22-5300205R

Active

Harwin Inc.

2+2 POS. MALE DIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

2+2 POS. MALE DIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M22-5300205R

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	4.35 mm, 6.55 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Insulation Height	Insulation Height	Contact Finish - Mating	Shrouding	Number of Rows	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Material	Connector Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Fastening Type	Insulation Material	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Mounting Type	Features	Mated Stacking Heights
Harwin Inc. M22-5300305R	1.5 mm	0.059 "	Gold	Unshrouded	2	All	UL94 V-0	1 A	0.079 in	2 mm	Square	Flash	Phosphor Bronze	Cuttable Header	6	0.138 in	3.5 mm	Push-Pull	Nylon 6T Polyamide (PA6T)	Black	0.079 in	2 mm	-40 °C	105 ░C	Male Pin	Solder	Surface Mount	Board Guide	4.35 mm 6.55 mm
Harwin Inc. M22-5300205R	1.5 mm	0.059 "	Gold	Unshrouded	2	All	UL94 V-0	1 A	0.079 in	2 mm	Square	Flash	Phosphor Bronze	Cuttable Header	4	0.138 in	3.5 mm	Push-Pull	Nylon 6T Polyamide (PA6T)	Black	0.079 in	2 mm	-40 °C	105 ░C	Male Pin	Solder	Surface Mount	Board Guide	4.35 mm 6.55 mm
