XHP50B-00-0000-0D0HH227G-SB01

Active

New Energy

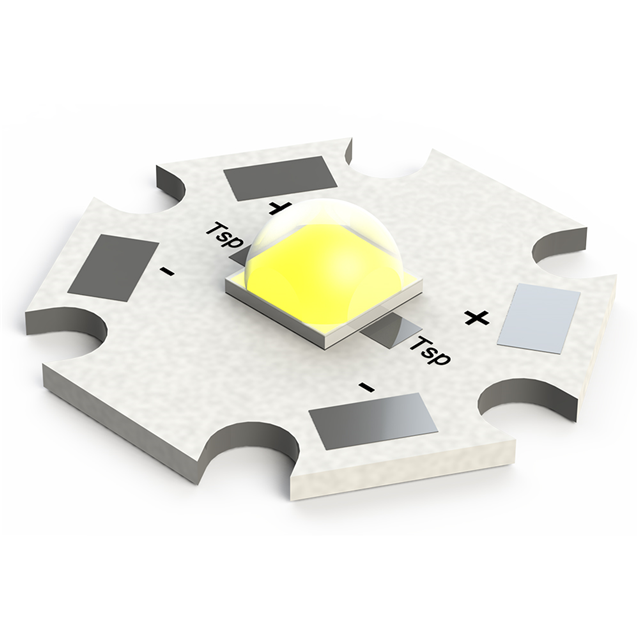

LED MOD XHP50.2 WH STARBD 2700K

Search across all available documentation for this part.

Active

New Energy

LED MOD XHP50.2 WH STARBD 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	XHP50B-00-0000-0D0HH227G-SB01

CCT (K)	2700 K
Color	White, Warm
Configuration	Starboard
CRI (Color Rendering Index)	80
Current - Max [Max]	1.5 A
Lens Type	Domed
Lumens/Watt @ Current - Test	115 lm/W
Luminous Flux @ Current/Temperature	900 lm
Size / Dimension [diameter]	19.89 mm
Temperature - Test	85 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	11.2 V

Part	CCT (K)	Type	Color	Size / Dimension [diameter]	Lens Type	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Current - Max [Max]	CRI (Color Rendering Index)	Configuration	Luminous Flux @ Current/Temperature	Temperature - Test
New Energy XHP50B-00-0000-0D0HH227G-SB01	2700 K	LED Module	Warm White	19.89 mm	Domed	11.2 V	115 lm/W	1.5 A	80	Starboard	900 lm	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module XHP50.2 White, Warm Starboard
