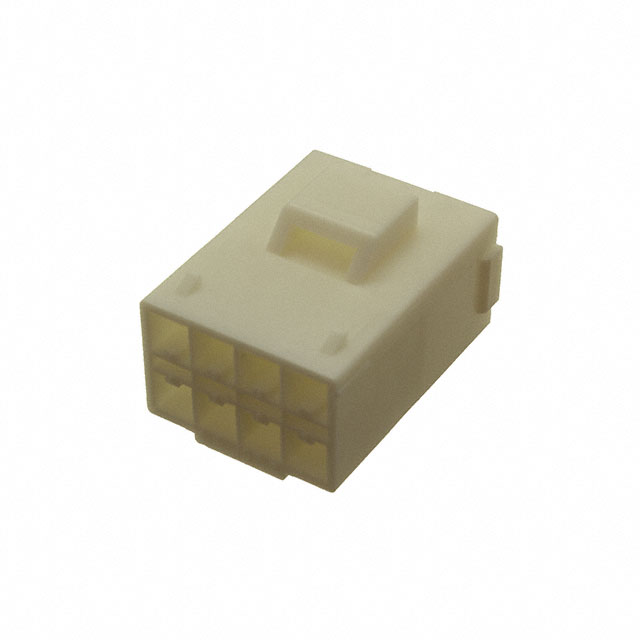

YLR-08VF

Active

JST Sales America Inc.

CONN RCPT HSG 8POS 4.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

YLR-08VF

Active

JST Sales America Inc.

CONN RCPT HSG 8POS 4.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YLR-08VF

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.177 in
Pitch [x]	4.5 mm

YLR Series

Part	Color	Pitch [x]	Pitch [x]	Note	Connector Type	Number of Rows	Number of Positions	Mounting Type	Contact Type	Insulation Material	Fastening Type	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]
JST Sales America Inc. YLR-06V	White	0.177 in	4.5 mm	Contacts Not Included	Receptacle	2	6	Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C
JST Sales America Inc. YLR-15V	White	0.177 in	4.5 mm	Contacts Not Included	Receptacle	3	15	Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C
JST Sales America Inc. YLR-21V	White	0.177 in	4.5 mm	Contacts Not Included	Receptacle	3	21	Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C
JST Sales America Inc. YLR-03VF	White	0.177 in	4.5 mm	Contacts Not Included	Receptacle	1		Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C
JST Sales America Inc. YLR-06VF	White	0.177 in	4.5 mm	Contacts Not Included	Receptacle	2	6	Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C
JST Sales America Inc. YLR-08VF	White	0.177 in	4.5 mm	Contacts Not Included	Receptacle	2	8	Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C
JST Sales America Inc. YLR-12V	White	0.177 in	4.5 mm	Contacts Not Included	Receptacle	3	12	Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C
JST Sales America Inc. YLR-01VF	White			Contacts Not Included	Receptacle	1	1	Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C
JST Sales America Inc. YLR-08V	White	0.177 in	4.5 mm	Contacts Not Included	Receptacle	2	8	Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C
JST Sales America Inc. YLR-04VF	White	0.177 in	4.5 mm	Contacts Not Included	Receptacle	2	4	Free Hanging (In-Line)	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	Crimp	90 °C	-25 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.64
		10	$ 0.56
		25	$ 0.51
		50	$ 0.48
		100	$ 0.46
		250	$ 0.42
		500	$ 0.40
		1000	$ 0.33
		2500	$ 0.30

Description

General part information

YLR Series

8 Rectangular Connectors - Housings Receptacle White 0.177" (4.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
